SMB N4E Grosso
(refurbished)
TECHNICAL DATA
| Frame size | (b)600 x (h)600 |
| Year of construction | 2006 |

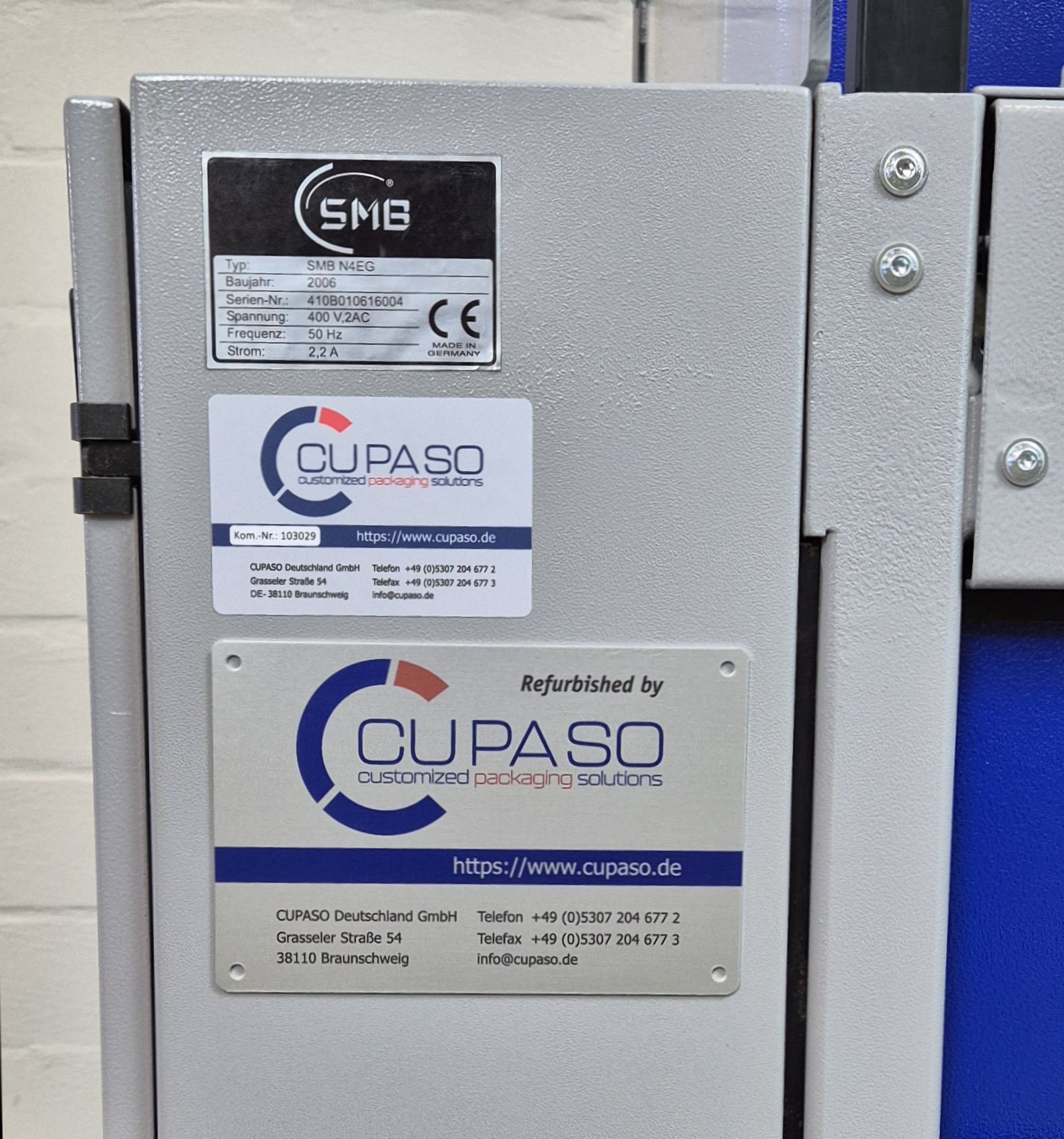

| Machine number | 410B010616004 |
| Condition | Completely overhauled |
| equipment | ⦁ Extraction ⦁ Reinforced blow-out, with bundle height sensing via bundle press (bundle height under 10 mm to min. approx. 3 mm - depends on the product) ⦁ Strap scanning ⦁ Strap ejector ⦁ Automatic strap feed ⦁ Strap cutting knife ⦁ Additional command buttons opposite the control unit (START/STOP/EMERGENCY STOP) ⦁ Blow gun with spiral hose ⦁ Bundle height-dependent automatic strap tensioning ⦁ Infeed and outfeed timing with complete 16-pin plug connection (Walther) ⦁ Height adjustment of the feet ⦁ Light barrier attachment at the top ⦁ Power cable, length 3 m ⦁ Package scanning ⦁ Package stops, move away from the package when opened ⦁ Gentle package press (with laser) ⦁ Plexiglass protective doors on the side, firmly screwed ⦁ Press beam, double ⦁ PLC control with jog dial control unit ⦁ Quick reel change device ⦁ Cycle stop linking ⦁ Table belt drive, continuously adjustable (frequency converter) ⦁ Electrics: Connection voltage 1 phase with neutral conductor or 2 phases at 198V, 208V, 218V, 220V - 240V, 390V - 410V, 450V - 500V 50 Hz or 60 Hz - Here set to 400V - 50 Hz - |
| Price | on request |
* Our prices are ex works and exclude VAT. Subject to prior sale.
