TSS145
TSS145
automatic thermosealer

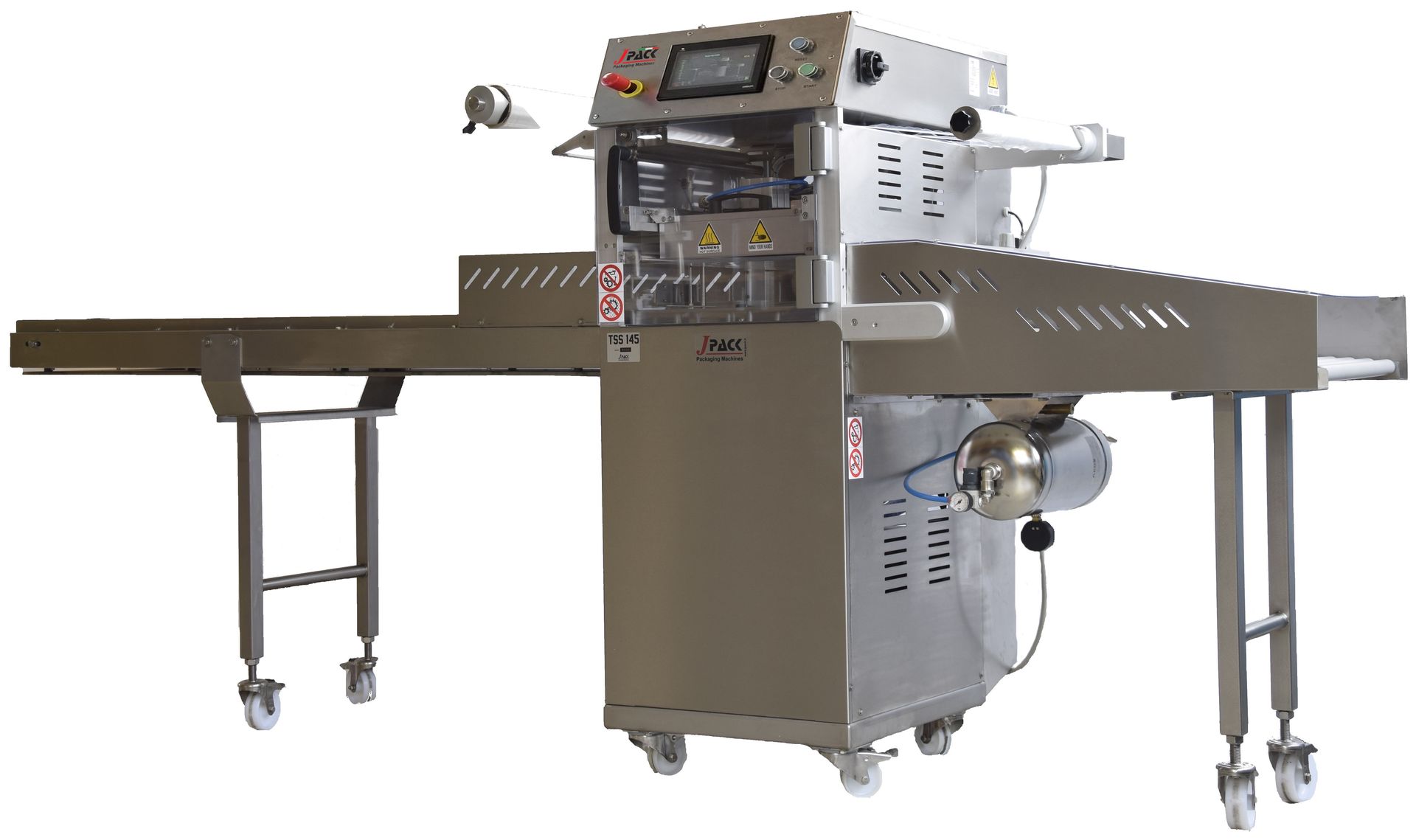

J Pack TSS145 Thermosealer
The TSS145 is an automatic in-line thermosealer with three loading positions and a brushless motor. The touchscreen features a practical and intuitive user interface designed to simplify and speed up sealing operations and ensure maximum product freshness.
TECHNICAL SPECIFICATIONS
| Technical specifications | TSS145 |
|---|---|
| Dimensions | 3,200 mm x 877 mm x 1,535 mm |
| Max. tray size | 390 mm x 280 mm x 100 mm |
| Max. reel width and diameter | L= 480 / Ø 240 mm |
| Feeding | 8/10 bar / 26 NL/C (machine) / 1/3 bar (gas) |
| Tray loading and handling | Automatic |
| Mould | Fixed with die-cut |
| Mould change | • |
| Customisable mould | • |
| Automatic film unwinding | • |
| Touchscreen | • |
| MAP (Modified Atmosphere Packaging) protective atmosphere | • |
| Partial and total cycle counter | • |
| Cycles per minute | 3 - 8 |
| Custom digital welding programmes | 10 |
| Vacuum pump | 63 m³/h Bush OIL / optional 100 m³/h external |
| Power supply | 380 V / 50 Hz 3 P + N + T |
