TSM101-R

TSM101-R

Manual electric thermosealer

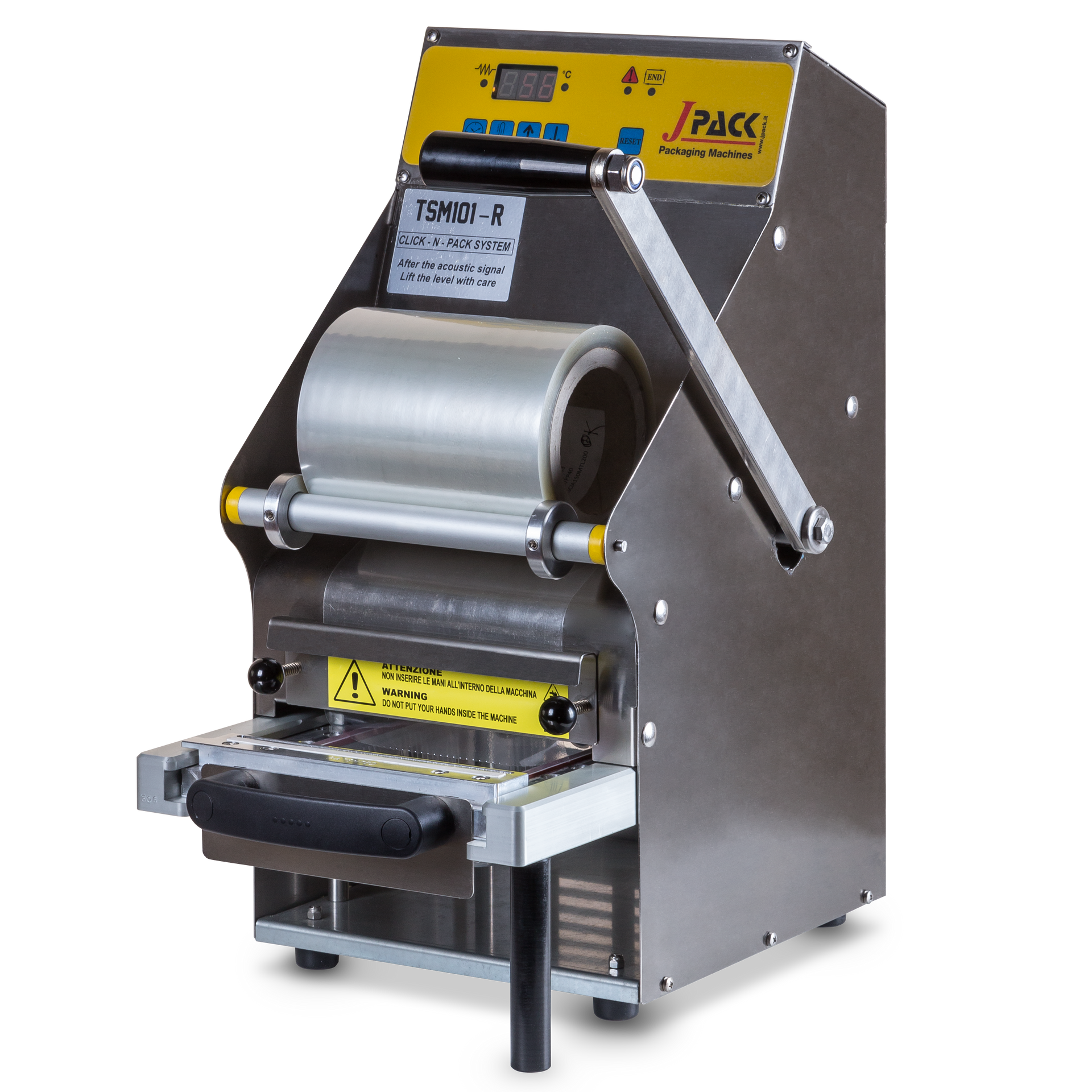

J Pack TSM101-R Thermosealer


Thanks to its compact dimensions and quick mould change, it is the ideal solution for small delis and supermarkets. The machine can be fitted with the patented INFINITY modular J Pack mould or with customised moulds. Thanks to the innovative "Click-n-Pack" system, sealing has never been easier.


TECHNICAL SPECIFICATIONS

Technical specifications TSM101-R
Dimensions 260 mm x 300 mm x 500 mm
Weight 20 kg
Max. tray size 205 mm x 150 mm x 100 mm
Max. reel width and diameter L= 150 / Ø 160 mm
Feeding Electric
Tray loading and handling Manually
Mould Infinity / Fixed, no die-cut
Mould change
Customisable mould
Automatic film unwinding
Acoustic end-of-cycle buzzer
Partial and total cycle counter
Cycles per minute 3 - 8
Custom digital welding programmes 5
Power supply 220 V / 500 W

areas of application
