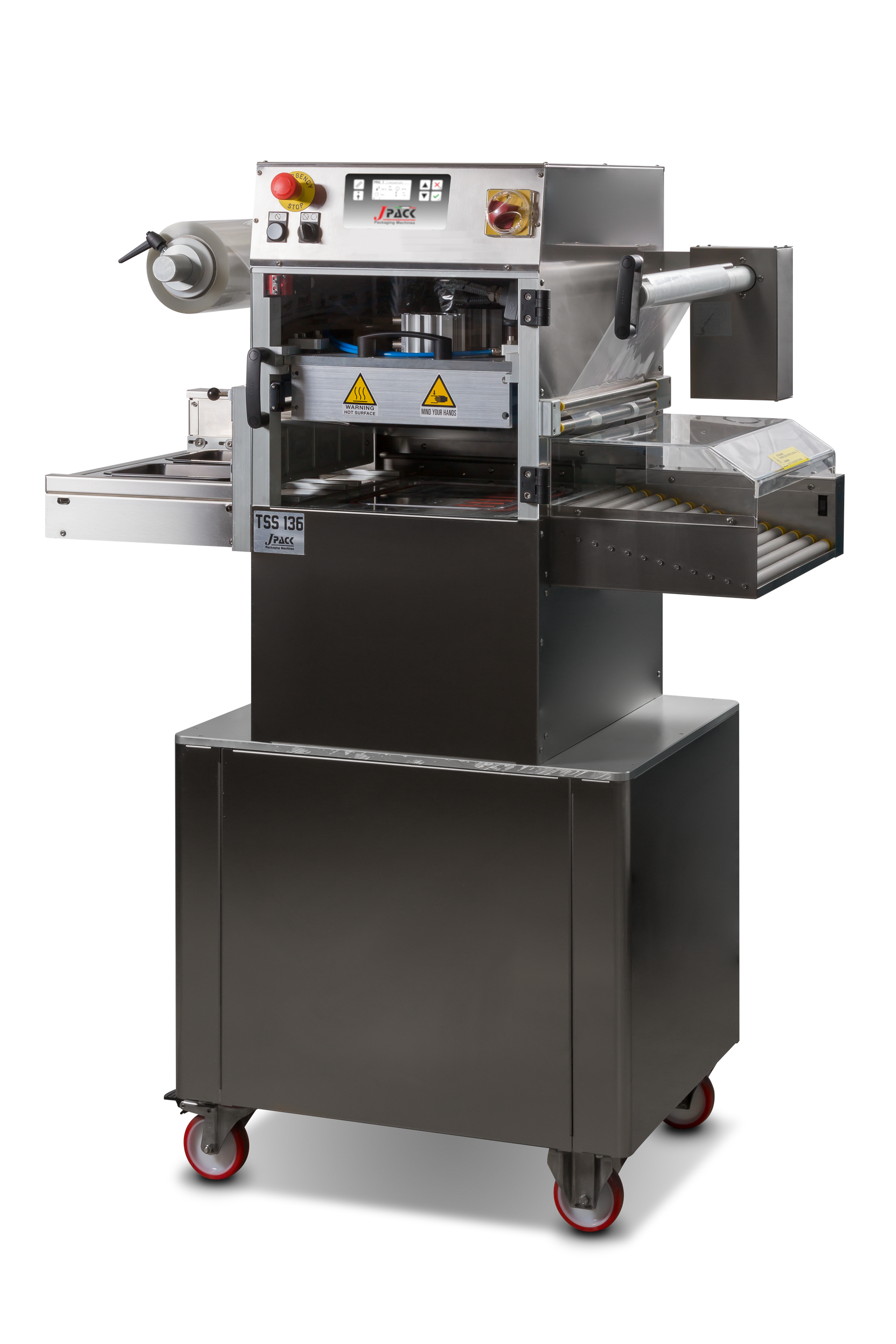

J Pack TSS136-SKIN Thermosealer
The TSS136-SKIN automatic sealer is designed for in-line packaging in laboratories, supermarkets and kitchens with medium to high productivity. The machine offers a high level of flexibility: in addition to just sealing and MAP (Modified Atmosphere Packaging), it is possible to package with SKIN technology. The machine is equipped with our patented AUTOSPEED handling system to simplify and speed up the sealing process. Thanks to the larger sealing plate, it is possible to seal two trays at a time, thereby doubling productivity.
TECHNICAL SPECIFICATIONS
Technical specifications | TSS136-SKIN |
---|---|
Dimensions | 1,130 mm x 760 mm x 1,490 mm |
Weight | 270 kg |
Max. tray size | 390 mm x 280 mm x 100 mm |
Max. reel width and diameter | L= 450 / Ø 200 mm |
Feeding | 6/8 bar / 18 NL/C (machine) / 3 bar (gas) |
Tray loading and handling | Automatic + Pneumatic |
Mould | Fixed die-cut |
Mould change | • |
Customisable mould | • |
Automatic film unwinding | • |
MAP (Modified Atmosphere Packaging) protective atmosphere | • |
Acoustic end-of-cycle buzzer | • |
Partial and total cycle counter | • |
Cycles per minute | 3 - 8 |
Custom digital welding programmes | 10 |
Vacuum pump | 40 m³/h / 70 m³/h |
Voltage and absorption | 380 V 3P+N+T/ min. 2,500 W - max. 3,500 W |
