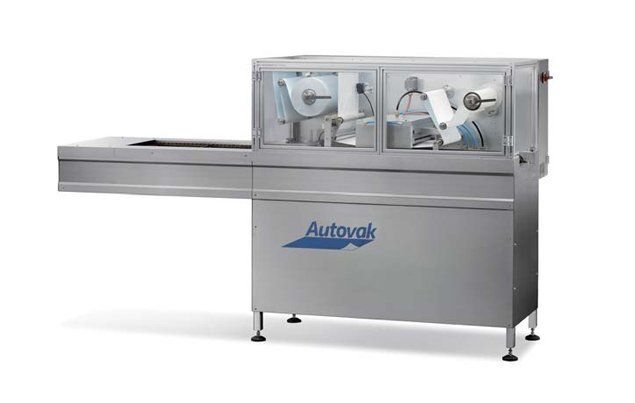

Continuous Sealing Machine
Continuous Sealing Machine
TR340
Technical specifications
| Manufacturer | AUTOVAK |
| Model | TR340 |
| Function | Blister box + envelope material continuous heat sealing |
| Main material | Aluminum alloy, stainless steel 304 |
| Dimensions | 2600 mm x 1000 mm x 1520 mm |
| Weight | ca. 450 kg |
| Power supply | Three-phase 400V, maximum 15A |
| Compressed air supply | Pressure 5 bar - 8 bar |
| Seal size | 250 mm x 300 mm |
| Packing depth | max. 100 mm |
| Production speed | Up to 12 cycles/min depending on operator qualifications |
| Heat seal pressure | 300 - 1500 kg adjustable |
| Price | on request >> |
* Our prices are ex works plus VAT. Subject to prior sale.

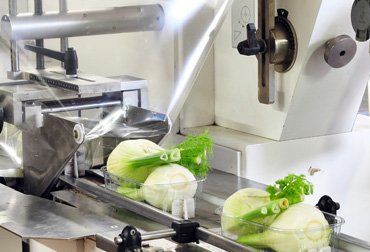

areas of application
