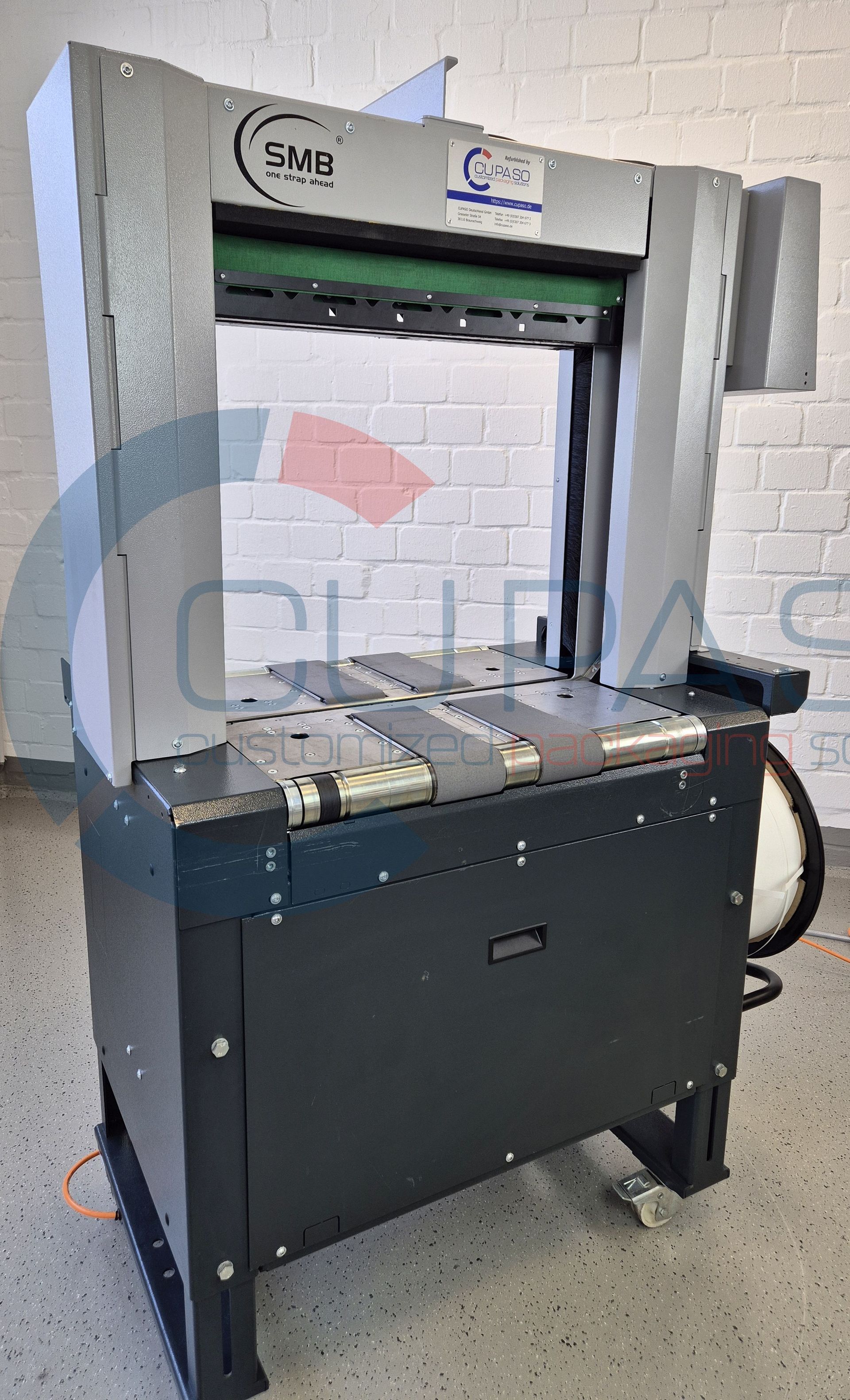

R240060 SMB CUBE 600x600c

SMB CUBE 600x600c

TECHNICAL DATA

Frame size 600 x 600
Construction year 2012
Machine number 223A011235001
Condition Completely overhauled
Basic equipment • Max. 35 packages/min.; depending on the tensioning path and frame size, without package pressing • Machine mobile (2 fixed/2 swivel castors with brake) • Table height 770 -1000mm • Driven conveyor belts • Machine color: frame RAL 7004 / frame RAL 7016 • Basic equipment according to data sheet (available at: www.smb.biz)
Special equipment • Signal exchange: 2 x mating connector with tool • Additional light barrier for attachment to front or rear machine • Signal exchange: Do not strap the package • External button: Do not strap the package • Strap tension dependent on the package height (laser sensor) • Pneumatic package press (600x600) • Double press bar 600 • Feed protection on table top, inlet side
Price on request

* Our prices are ex works and plus VAT. Subject to prior sale.
