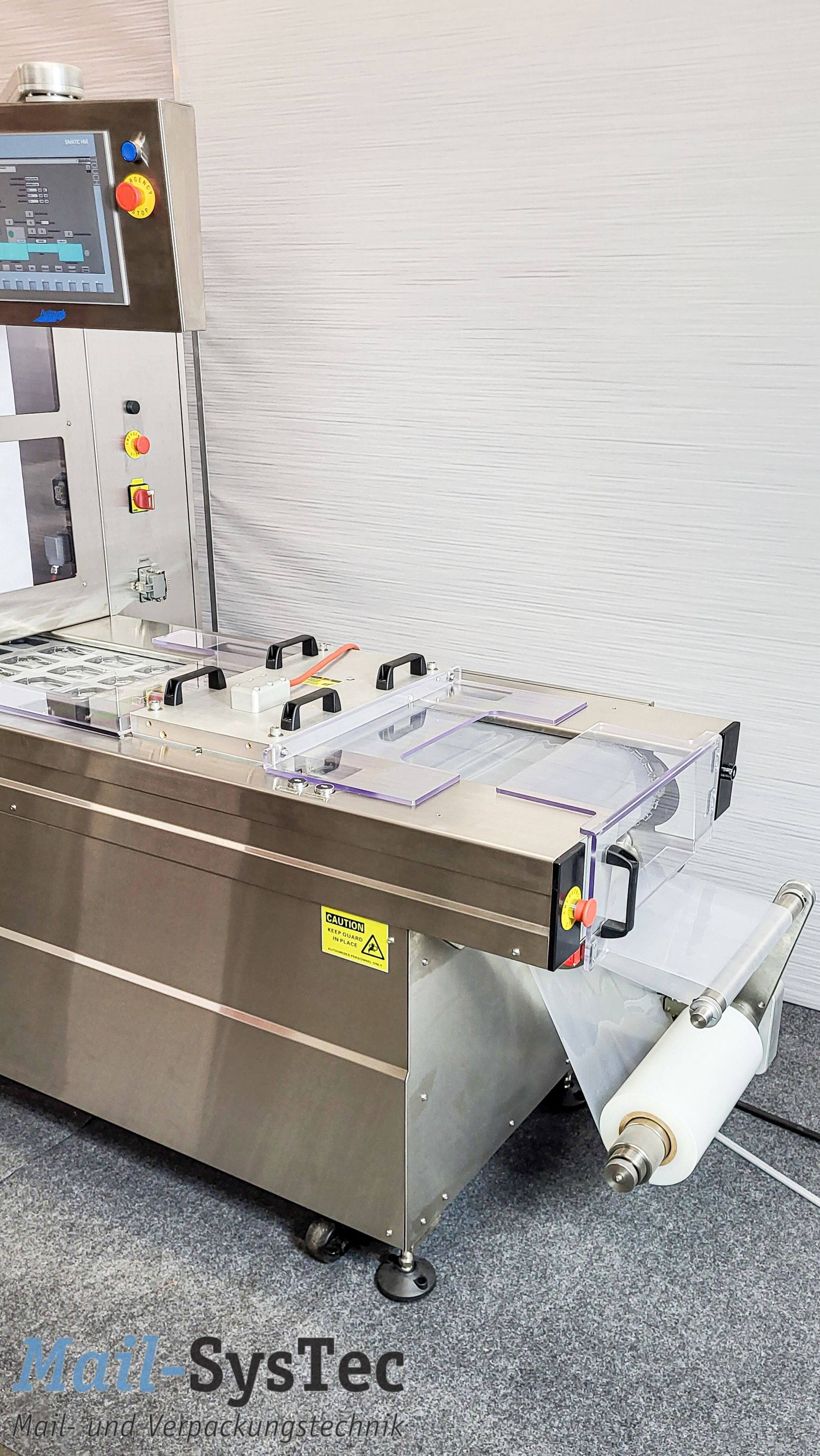

AUTOVAK M320
AUTOVAK M320
Technical specifications
| Manufacturer | AUTOVAK |
| Model | M320 |
| Main material | Stainless steel |
| Dimensions | 3,550 mm x 1,050 mm x 2,300 mm |
| Weight | ca. 1,200 kg |
| Power supply | 3 x 400 V + N + E / 50/60 Hz |
| Compressed air supply | Pressure min. 6 bar, 500 L/min (without printer) |
| Width of top web | 305 - 310 mm |
| Roll core diameter | 3" |
| Roll diameter | 400 mm |
| Width of bottom film | 322 +/- 1 mm |
| Roll core diameter | 3" |
| Roll diameter | 300 mm |
| Cutting size | 130 x 100 mm |
| Forming depth | 15 mm |
| Loading area length | 450 mm |
| Installed power | 15 kW |
| Noise level | Less than 72dB |
| Production speed | 3 ~ 10 cycles/min |

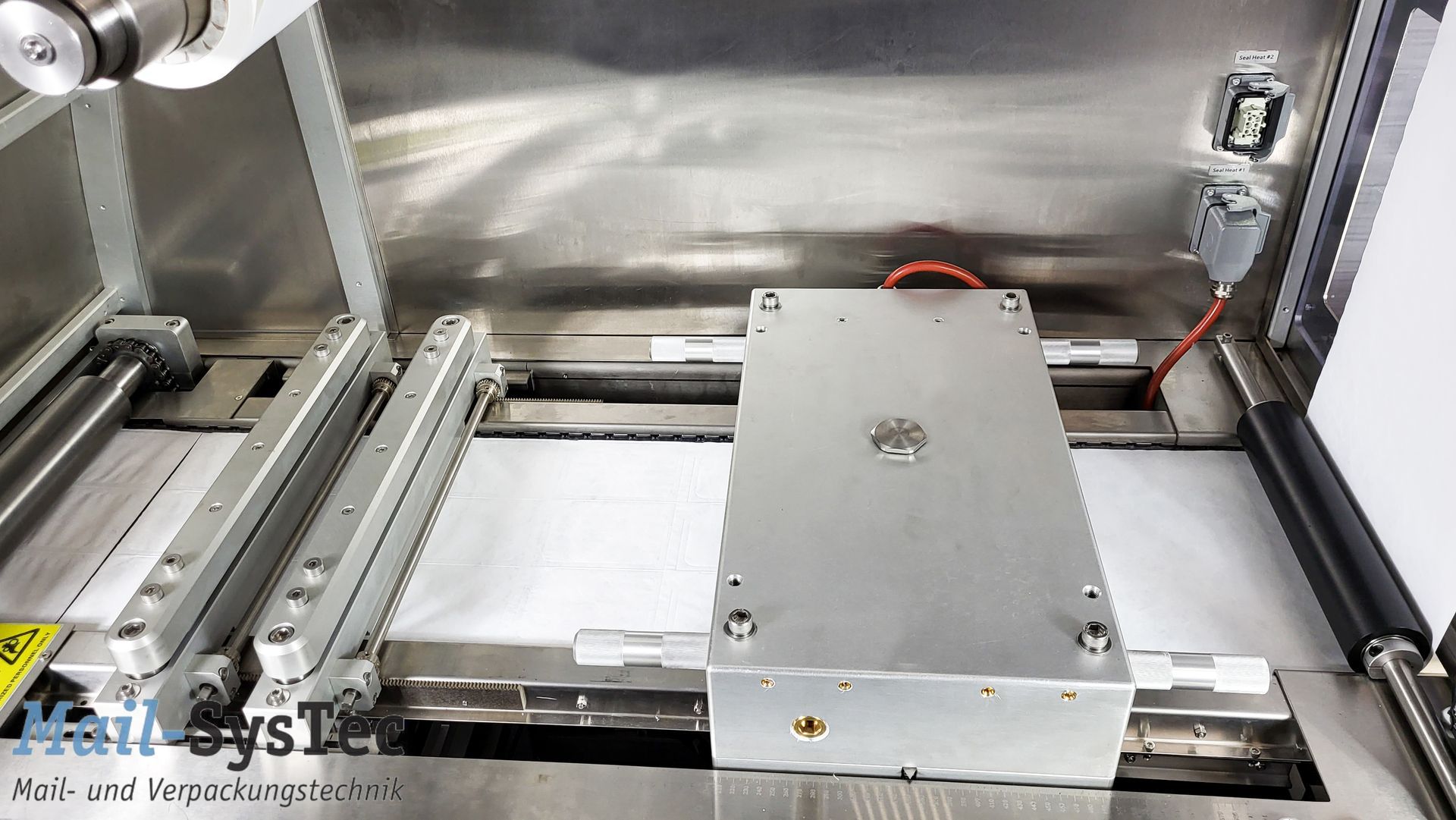

| Equipment | Forming tool for 3 blisters per stroke each with opening aid at one corner; Inner dimensions: 105 mm x 75 mm x 15 mm |
| Condition | Like new (exhibitor model) |
| Price | 58.000€ |
* Our prices are ex works plus VAT. Subject to prior sale.

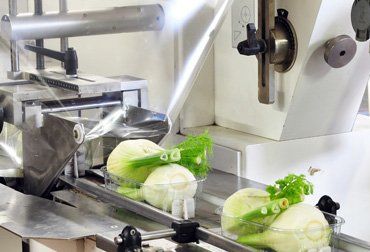

areas of application
