TSS115-BG
TSS115-BG

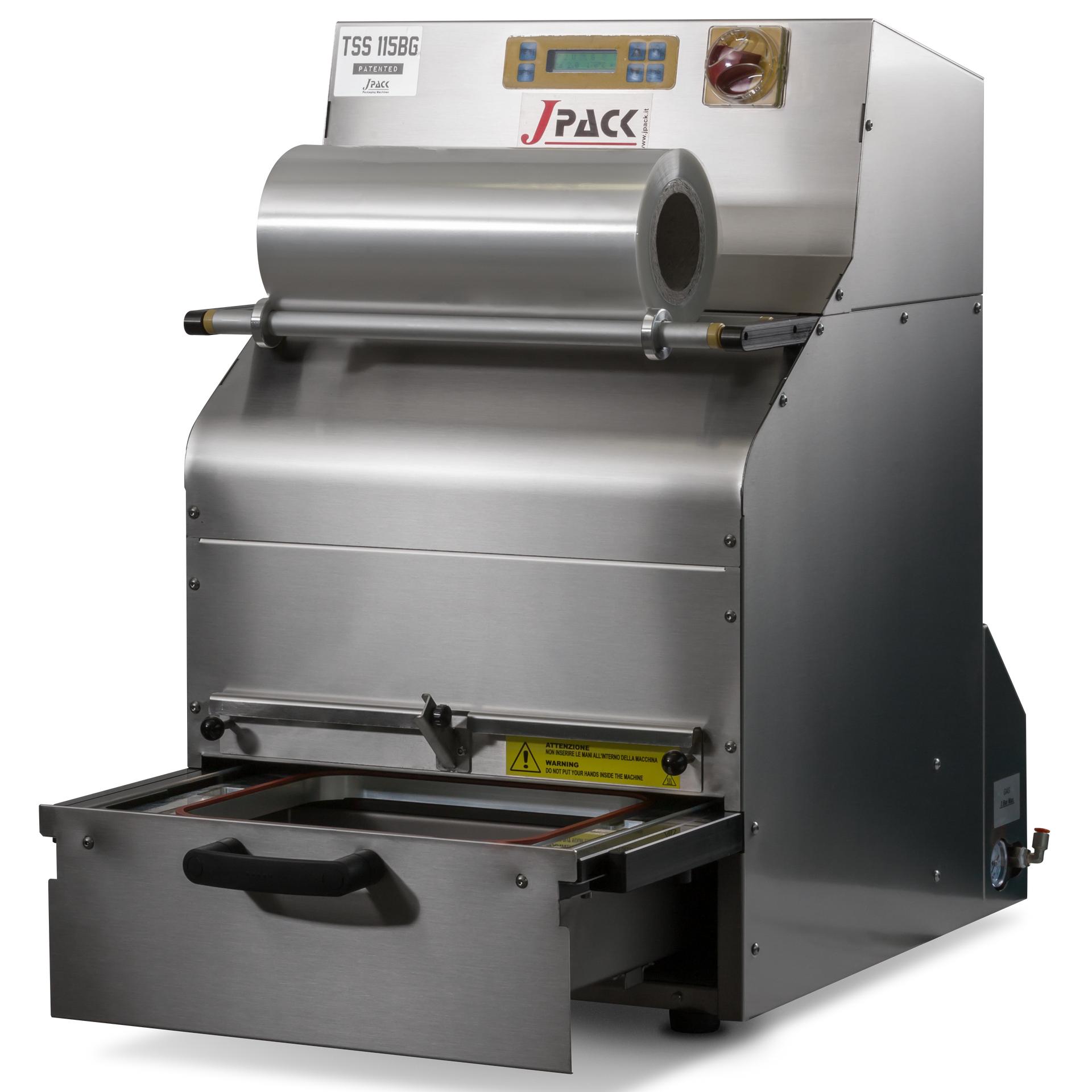

Semi-automatic thermosealer
J Pack TSS115-BG Thermosealer
The
TSS115-BG semi-automatic tabletop thermosealer is the result of J Pack's investment in research and development. Equipped with J Pack's patented
all-electric handling system, it allows
MAP (Modified Atmosphere Packaging) sealing
without the need for compressed air. All sealing parameters are customisable, and
up to 10 different programmes can be stored. The machine is remarkably flexible: it is possible to choose between different sealing modes (sealing, vacuum and MAP) and moulds can be customised.
TECHNICAL SPECIFICATIONS
| Technical specifications | TSS115-BG |
|---|---|
| Dimensions | 500 mm x 680 mm x 780 mm |
| Weight | 70 kg |
| Max. tray size | 370 mm x 260 mm x 105 mm |
| Max. reel width and diameter | L= 380 / Ø 200 mm |
| Feeding | Electric machine (no compressed air) |
| Tray loading and handling | Manual + Electric |
| Mould | Fixed, no die-cut |
| Mould change | • |
| Customisable mould | • |
| Automatic film unwinding | • |
| MAP (Modified Atmosphere Packaging) protective atmosphere | • |
| Acoustic end-of-cycle buzzer | • |
| Partial and total cycle counter | • |
| Cycles per minute | 3 - 8 |
| Custom digital welding programmes | 10 |
| Vacuum pump | 12 m³/h (optional 25 m³/h) |
| Gas supply | 3 bar |
| Power supply | 220 V / ca. 2,000 W |

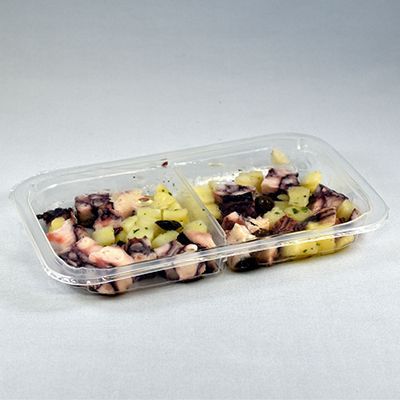

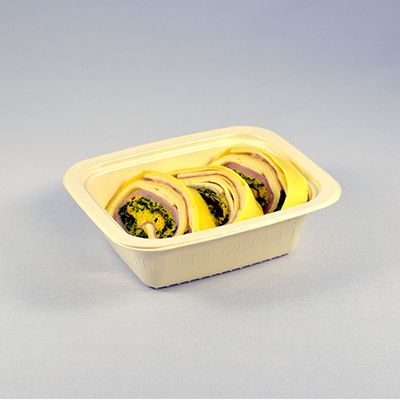

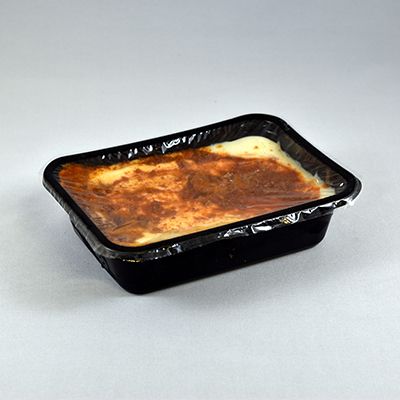

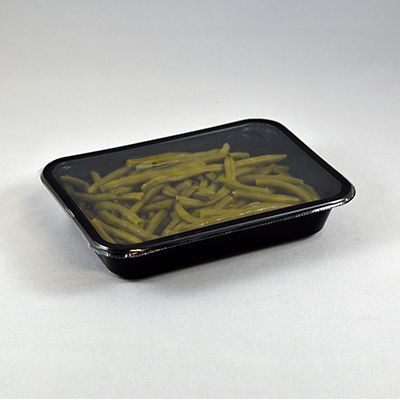

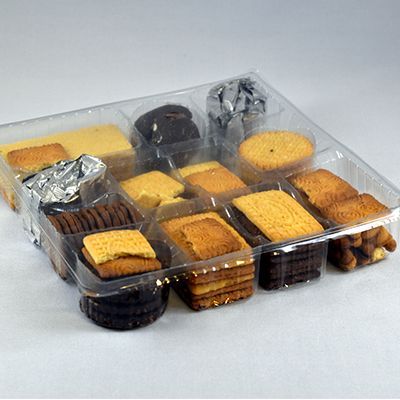

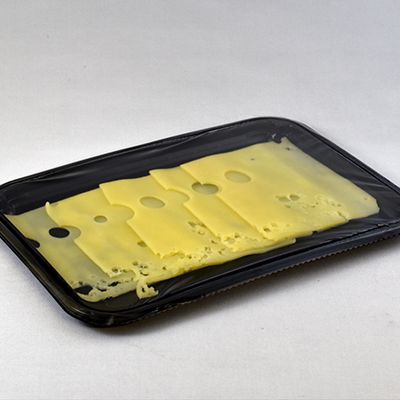

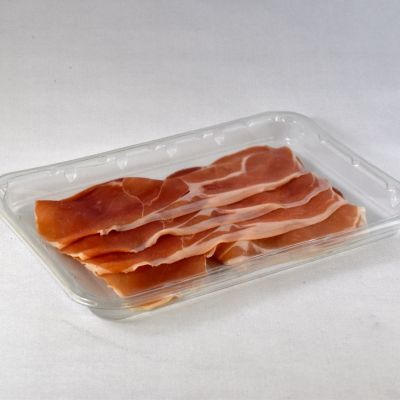

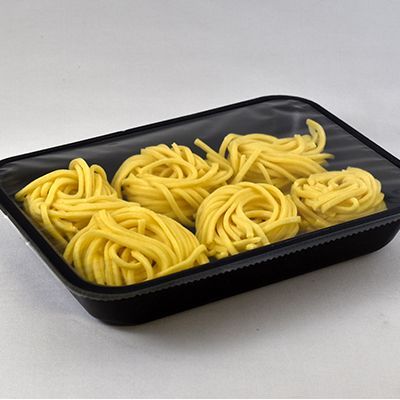

areas of application
