JPACK Neumaschinen

TSM105-R

Manual electric thermosealer

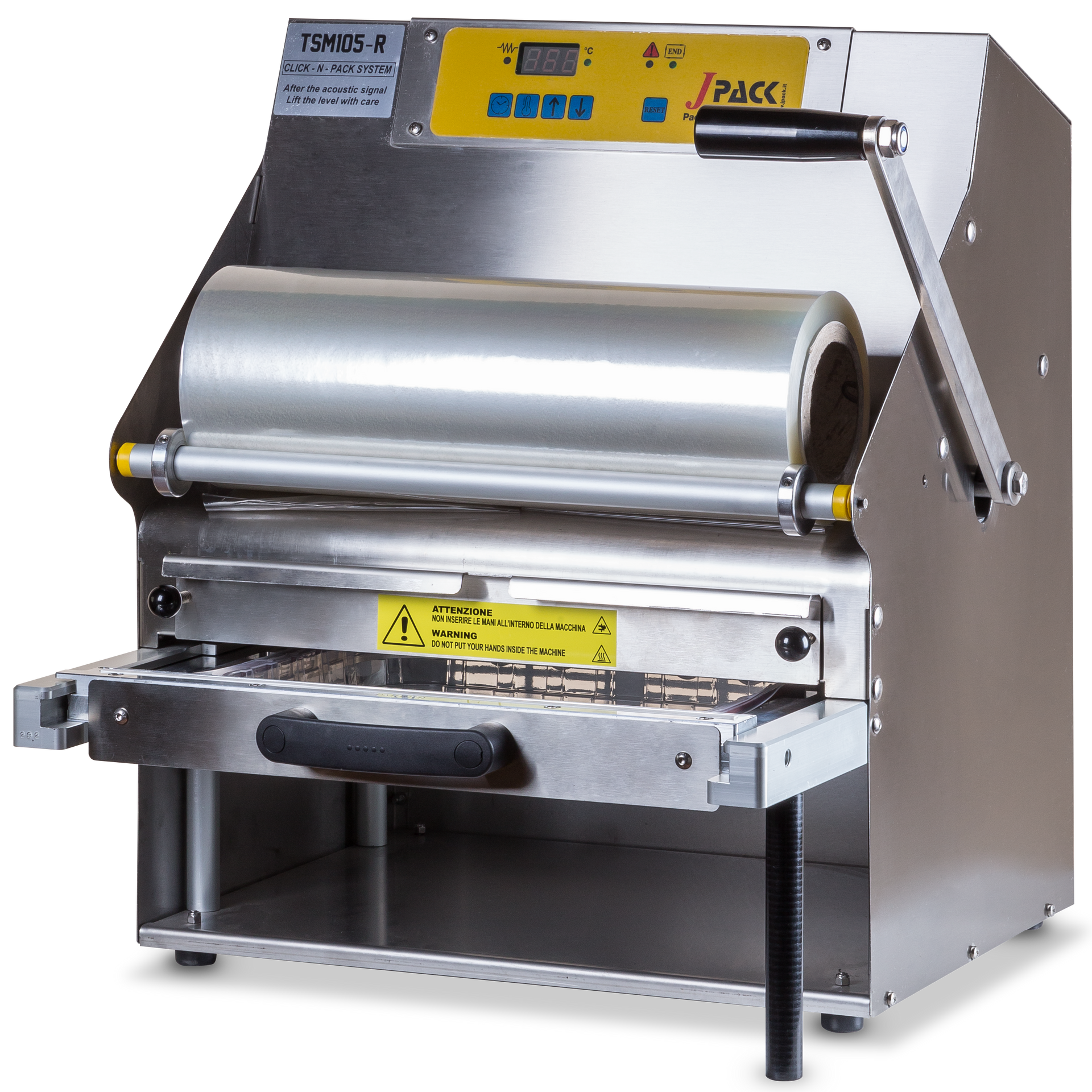

J Pack TSM105-R Thermosealer

Thanks to its compact dimensions and quick mould change, it is the ideal solution for small delis and supermarkets. The machine can be fitted with the patented INFINITY modular J Pack mould or with customised moulds. The large sealing surface allows the sealing of large trays up to ½ GN. Thanks to the innovative "Click-n-Pack" system, sealing has never been easier.

TECHNICAL SPECIFICATIONS

Technical specifications	TSM105-R
Dimensions	485 mm x 510 mm x 555 mm
Weight	36 kg
Max. tray size	370 mm x 280 mm x 155 mm
Max. reel width and diameter	L= 380 / Ø 200 mm
Feeding	Electric
Tray loading and handling	Manually
Mould	Infinity / Fixed, no die-cut
Mould change	•
Customisable mould	•
Automatic film unwinding	•
Acoustic end-of-cycle buzzer	•
Cycles per minute	3 - 8
Custom digital welding programmes	5
Power supply	220 V / 1400 W

areas of application

Meat

Packaging of all kinds of meat.
Button
Fish

Preservation and packaging of all fish industry products.
Button
Vegetables

Packing of fresh and cooked vegetables.
Button
Fruit

Sealing of dried and fresh fruit.
Button
Cheese

Sealing of fresh, aged and creamy cheeses.
Button
Large-Scale Catering

Sealing of ready meals for large-scale food consumption.
Button
Deli Stores

Sealing of ready meals.
Button
Pasta

Packaging of fresh, filled, dry and pre-cooked pasta.
Button
Miscellaneous

Packaging of a wide array of products.
Button
Liquids

Special sealing of thick or liquid food.
