TSS114
TSS114
Semi-automatic tray sealer
with foil punching

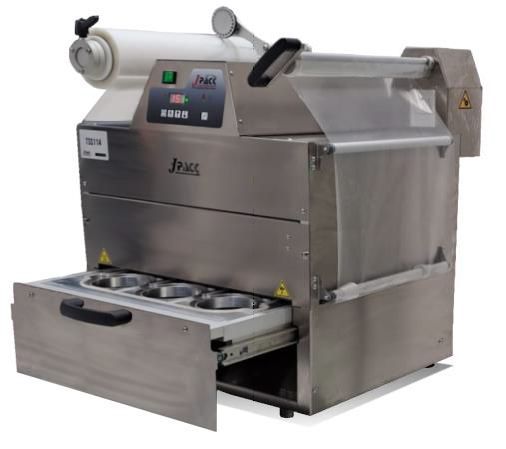

J Pack TSS114 Tray Sealer
The tray sealer TSS114 is an electric table machine. The integrated residual film unwinding and the sliding rails make the machine particularly compact and easy to install. The machine is characterized by the wide sealing surface and the film cut around the tray edge. The result is a sealed tray with an excellent aesthetic finish, perfect for the supermarket shelves. A version with gas flushing is also available
TECHNICAL DATA
| Technical data | TSS114 |
|---|---|
| Dimensions | 560mm x 580mm x (h) 510mm |
| Weight | 65 kg |
| Max. tray size | 420 mm x 280 mm x 175 mm |
| Max. roll width and diameter | L= 450 / Ø 250 mm |
| Feeding | Electric |
| Closing process with movement sequence | Manual Electric |
| Form | Fixed and punched |
| Change of form | • |
| Shape according to customer specifications | • |
| Automatic film removal | • |
| Signal at end of cycle | • |
| Partial and total cycle counter | • |
| Cycles per minute | 3 - 6 |
| Individual digital sealing programs | 9 |
| Power supply | 220 V / min. 1.500 W - max. 2.000 W |
| Options | Gas flushing |
Areas of application
