TSS125-SKIN
TSS125-SKIN
Semi-automatic pneumatic thermosealer

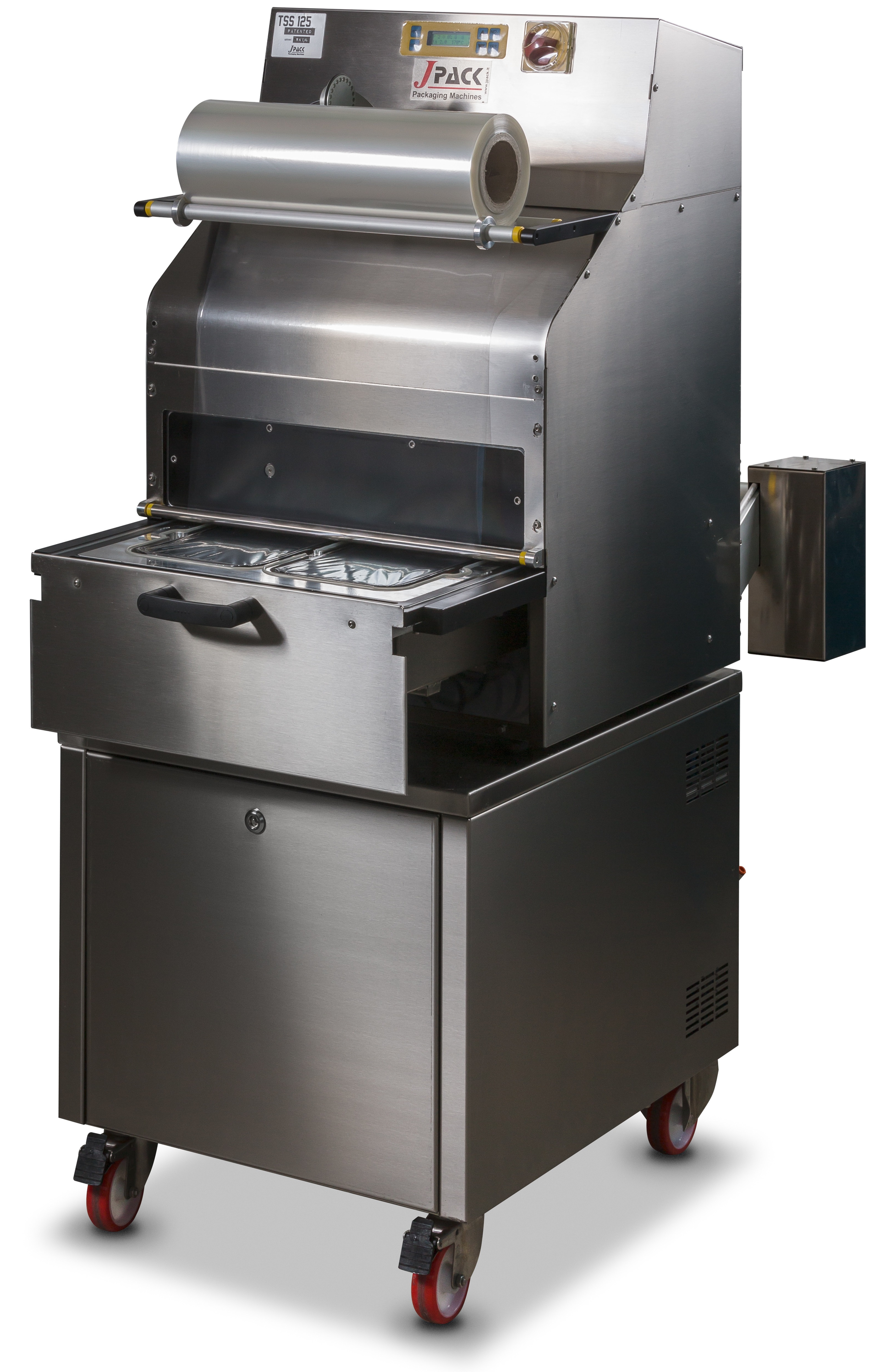

J Pack TSS125-SKIN Thermosealer

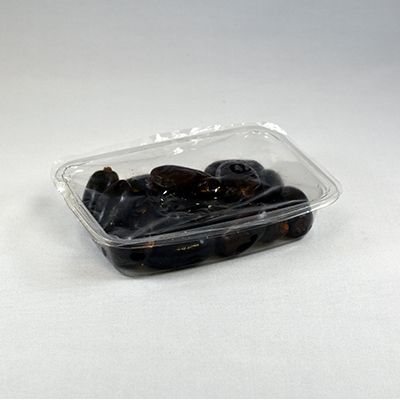

The TSS125-SKIN pneumatic semi-automatic thermosealer is a wheeled machine designed for maximum flexibility. In fact, it is possible to customise the different sealing parameters, storing up to 10 different programmes. Among the multiple sealing modes, the possibility to seal using SKIN technology is a highlight. With this system you can give your products a 'second skin' while keeping all their freshness intact, for a result with a strong aesthetic impact.
TECHNICAL SPECIFICATIONS
| Technical specifications | TSS125-SKIN |
|---|---|
| Dimensions | 590 mm x 750 mm x 1,440 mm |
| Weight | ca. 170 kg |
| Max. tray height | 100 (optional 150) mm |
| Sealing plate size | 420 mm x 280 mm |
| Max. film size | Ø 250 mm x 470 mm |
| Cycles per minute | 3 - 8 |
| Air consumption | 6 Nl/c |
| Pneumatic supply | 6 - 8 bar |
| Gas supply | 3 bar |
| Consumption | 3.5 kW |
| Power supply | 380 V 3 P + N + T 16 A |

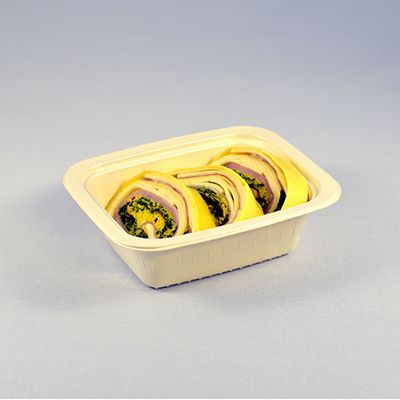

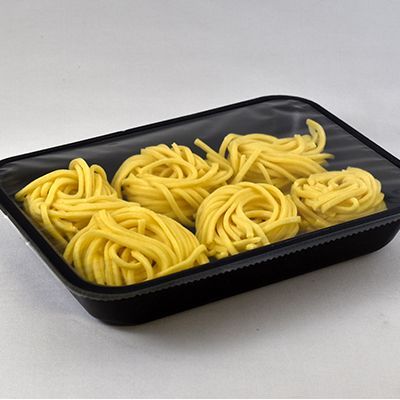

areas of application
