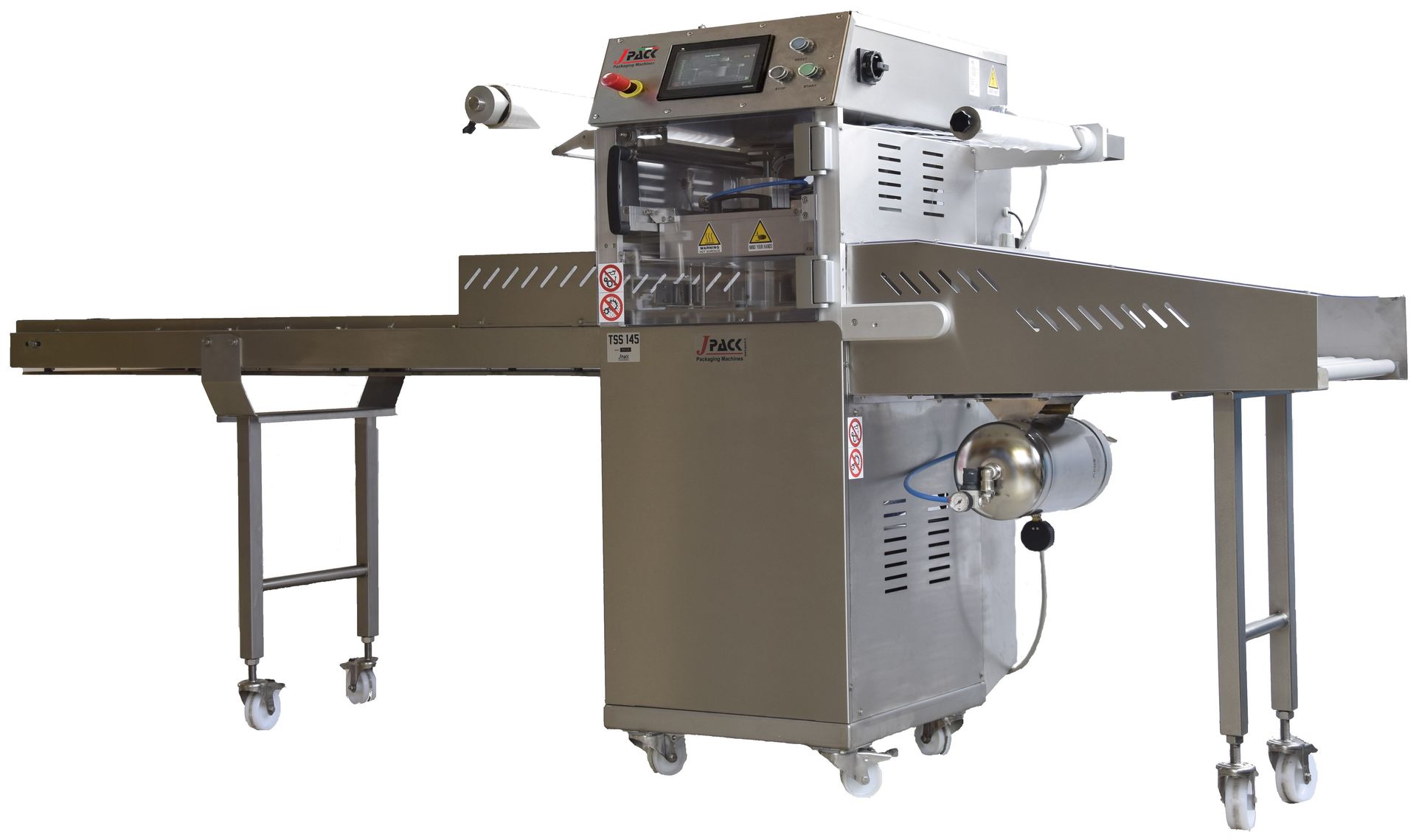

J Pack TSS145-SKIN Thermosealer
The automatic tray sealer TSS145 is also available in a SKIN version. Equipped with three loading positions and chain handling, its practical and intuitive user interface makes it possible to simplify and speed up sealing operations and ensure maximum product freshness. It is the ideal solution wherever skin packaging requirements demand high productivity.
TECHNICAL SPECIFICATIONS
Technical specifications | TSS145-SKIN |
---|---|
Dimensions | 3,200 mm x 877 mm x 1,535 mm |
Weight | ca. 300 kg |
Tray height | min. 15 mm / max. 100 mm |
Sealing plate size | 390 mm x 280 mm |
Max. film size | Ø 240 mm x 480 mm |
Cycles per minute | 3 - 8 |
Air consumption | 33 Nl/c |
Pneumatic supply | 6 - 8 bar |
Gas supply | 1,5 / 0,9 bar |
Consumption | 4.7 kW |
Power supply | 380 V 3 P + N + T |
areas of application

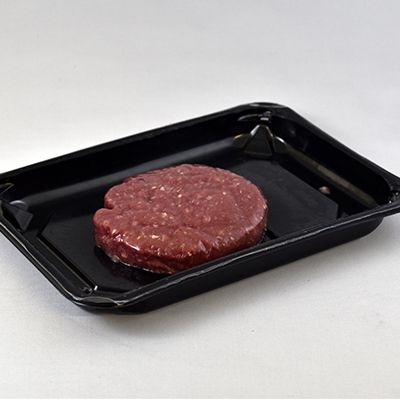

Packaging of all kinds of meat.
Preservation and packaging of all fish industry products.

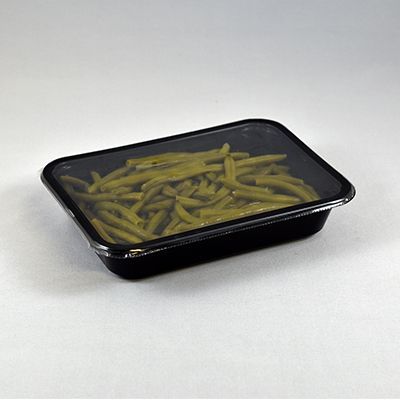

Packing of fresh and cooked vegetables.

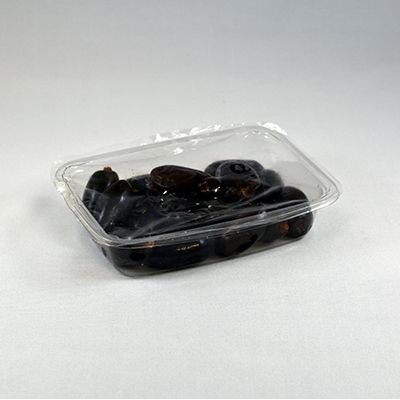

Sealing of dried and fresh fruit.

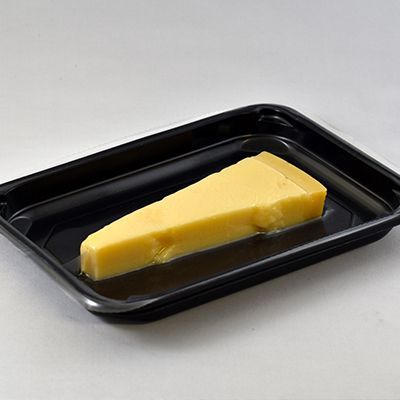

Sealing of fresh, aged and creamy cheeses.

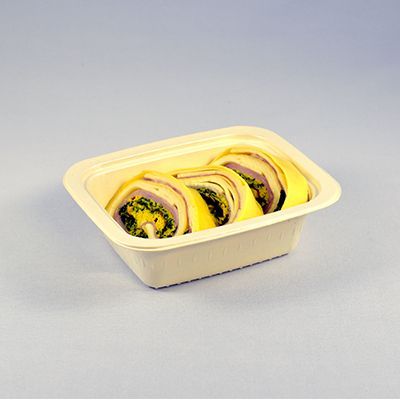

Sealing of ready meals for large-scale food consumption.

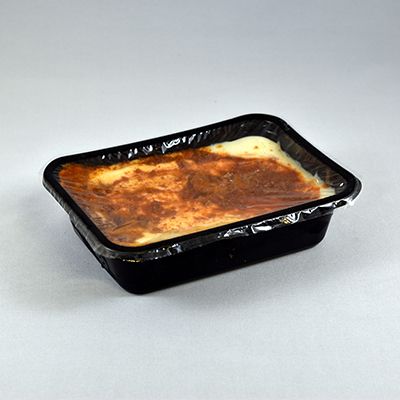

Sealing of ready meals.

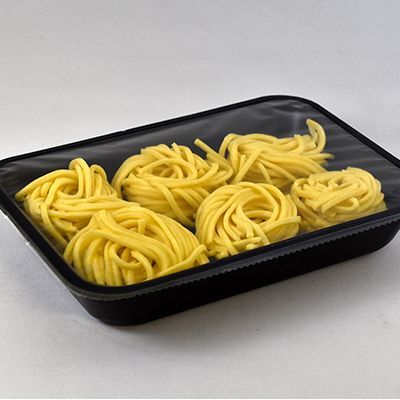

Packaging of fresh, filled, dry and pre-cooked pasta.
Packaging of a wide array of products.
Special sealing of thick or liquid food.
