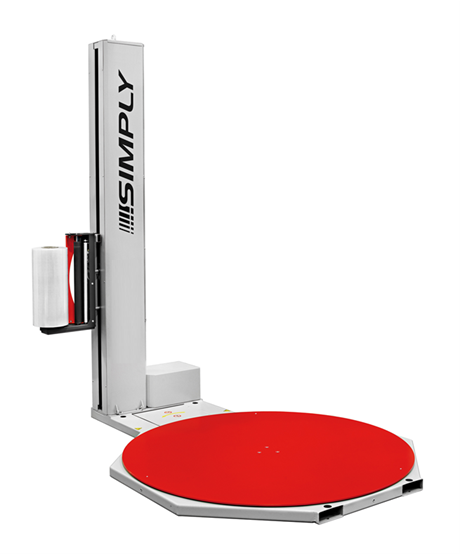

Simply

Operational Features


  • Simple and cost-effective stretch machine for standard applications
  • Chain drive, therefore few maintenance requirements
  • Soft start and soft stop
  • Photocell to detect the pallet height and control the stretching process

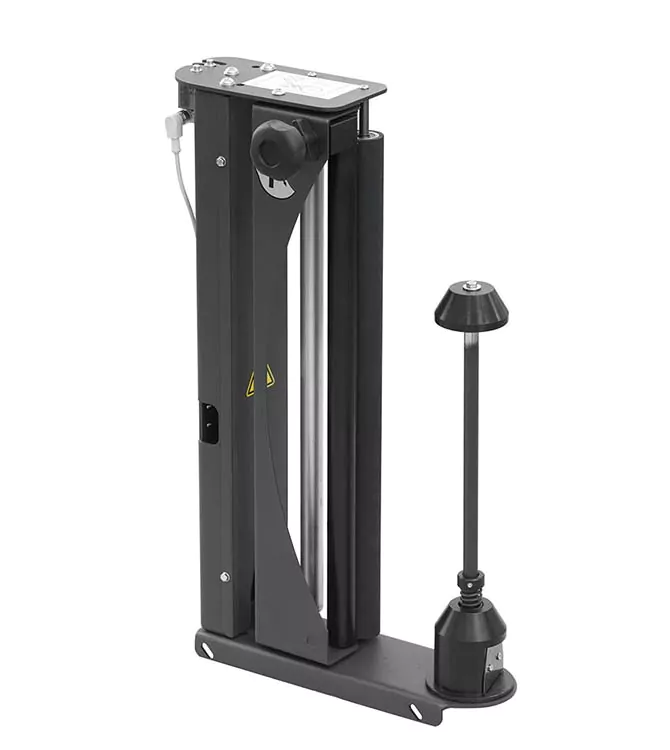

stretch system Model variants

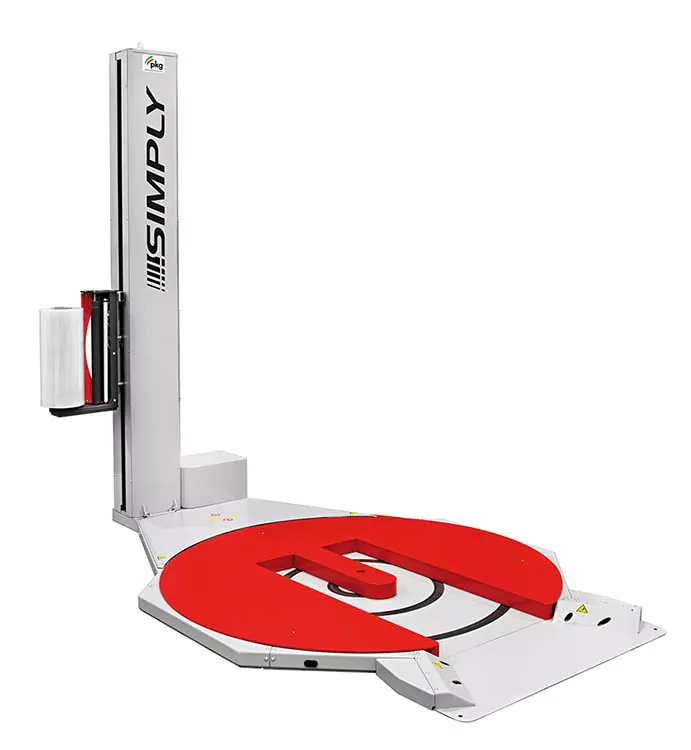

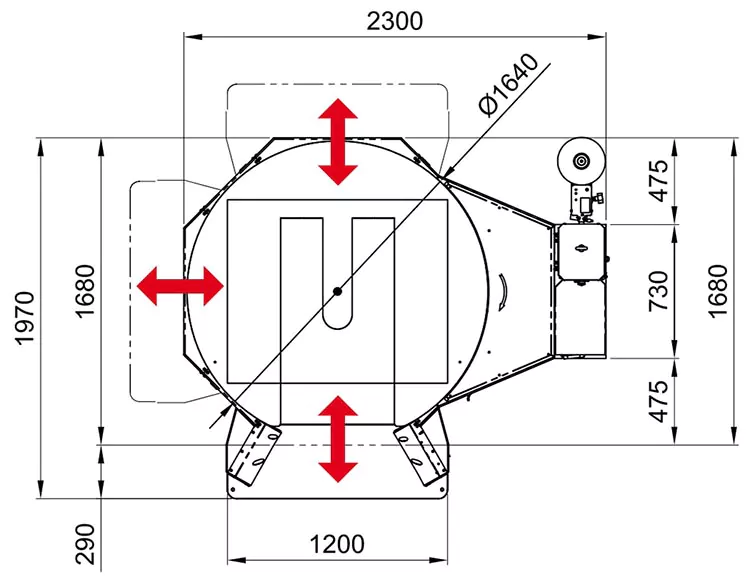

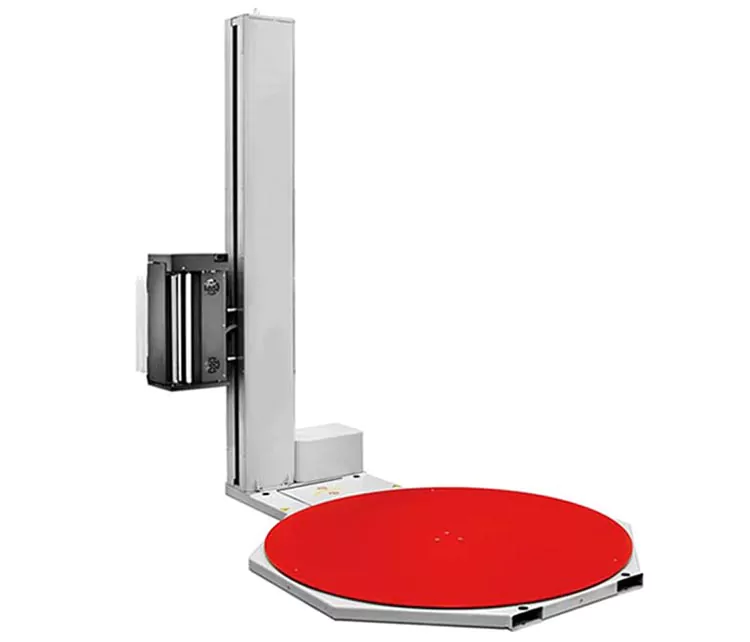

turntable variants

TECHNICAL SPECIFICATIONS

Technical specifications Simply
Turntable diameter 1,650 mm (optional: 1,500 mm)
Max. pallet dimensions 1,000 x 1,200 mm
Max. turntable speed 3 – 12 revolutions / min
Load capacity 2,000 kg
Electr. connection 230 V, 50 Hz
Machine weight Approx. 450 kg
Machine performance Approx. 20 pallettes / h
Max. winding height 2,200 mm
Foil type Machine stretch film
Roll diameter Max. 250 mm
Roll height 500 mm
Roll weight ~20 kg

Safety features


  • Emergency stop button on the control panel
  • Acoustic signal on start and stop
  • Foil slide with safety mechanism (stops when hitting a resistance during downward movement)
  • Safety switch of the insertion opening when the turntable is recessed (optional)

Special equipment and accessories

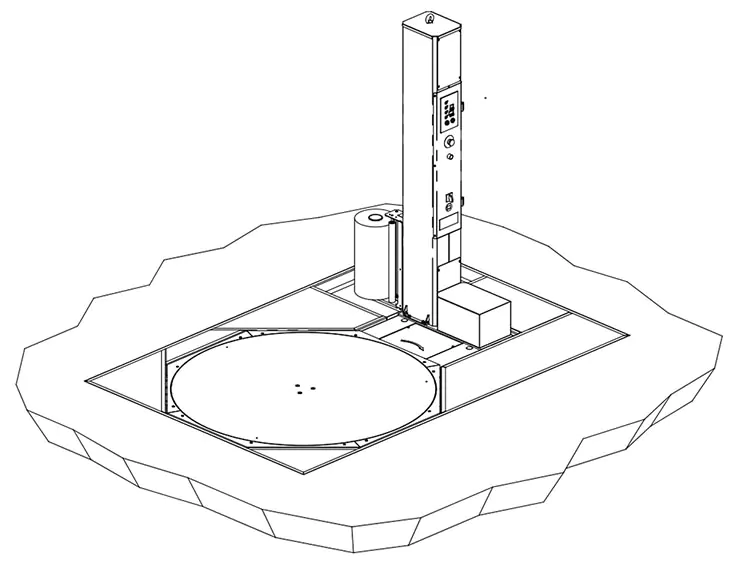

  • Retractable frame (turntable flush with floor)
  • Photocell for black detection

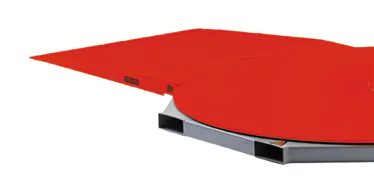

  • Ramp for forklift

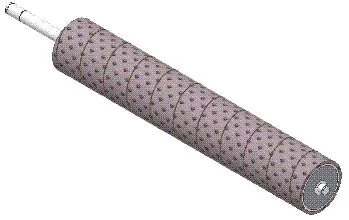

  • Guide roller for net foil
  • Stretch cord system (manual)
  • Holder for film with Ø 50 mm core
  • Foil compression system (manual)
  • Wifi network connection

Workflow


First, the pallet is positioned on the machine's turntable. The stretch film is manually attached to the pallet and the stretching process is started. When the wrapping is finished, the machine stops at the start position and the film simply has to be cut.

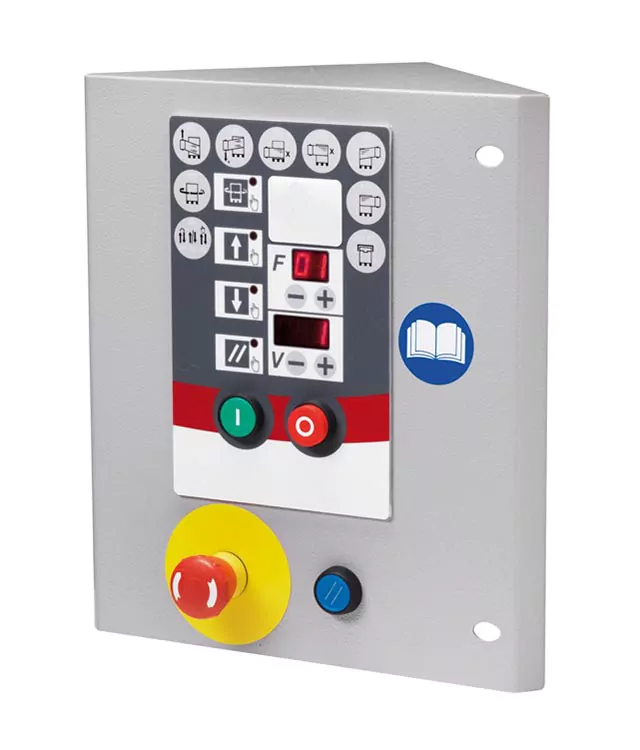

control panel

Adjustable parameters on the operator panel Simply
Spiral winding (up only or down only) ✓
Cross winding (up and down) ✓
Cross winding with cover sheet (rainproof) Manually
Cross winding with reinforcement areas (manual function) ✓
Cross winding without photocell function (stretching to preset height) ✓
Ascent and descent speed of the foil carriage (separately adjustable) ✓
Number of foot and head windings ✓
Speed of the turntable ✓
Manual control of the machine ✓
Reset function ✓
Foil overlap at the top of the pallet ✓
