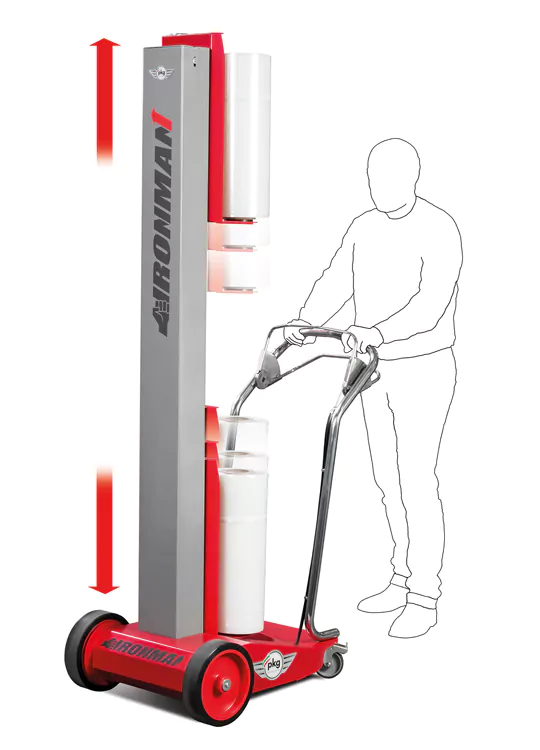

Ironman

Operational Features


  • Stretching of a complete pallet (standard) is possible in less than 1 minute
  • Hand-operated stretch wrapper for wrapping all types of packaged goods
  • Pallet loads with high weight
  • Pallet loads with virtually unlimited side lengths
  • Unstable pallet loads
  • Slide lift (up/down) is automatic via mechanical chain hoist via ergonomic lever on handle
  • Little space required in confined spaces / pallet storage areas

stretch system Model variants

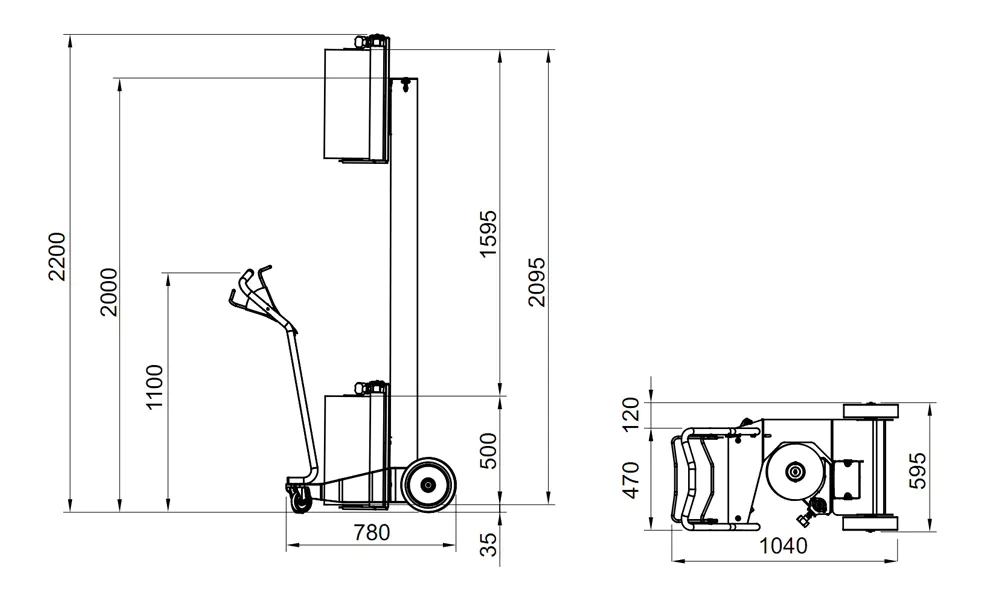

TECHNICAL SPECIFICATIONS

Technical specifications Ironman
Pallet dimension Min. 200 x 200 mm, max. unlimited
Max. wrapping height 2,000 mm
Min. wrapping height 500 mm
Pallet weight Min. 30 kg, max. unlimited
Machine weight Approx. 90 kg
Film type Machine stretch films (optional: hand stretch films)
Roll diameter Max. 230 mm
Roll height 500 mm
Roll weight Approx. 8 kg
Special equipment and accessories Roll receptacle for hand stretch films
