Twist

Twist

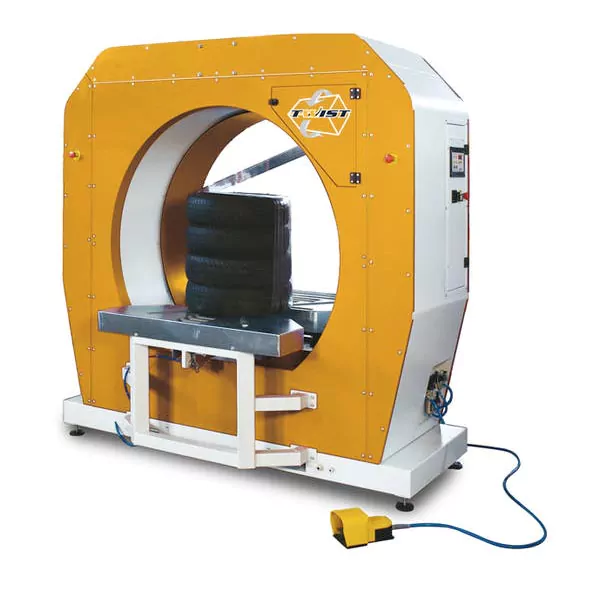

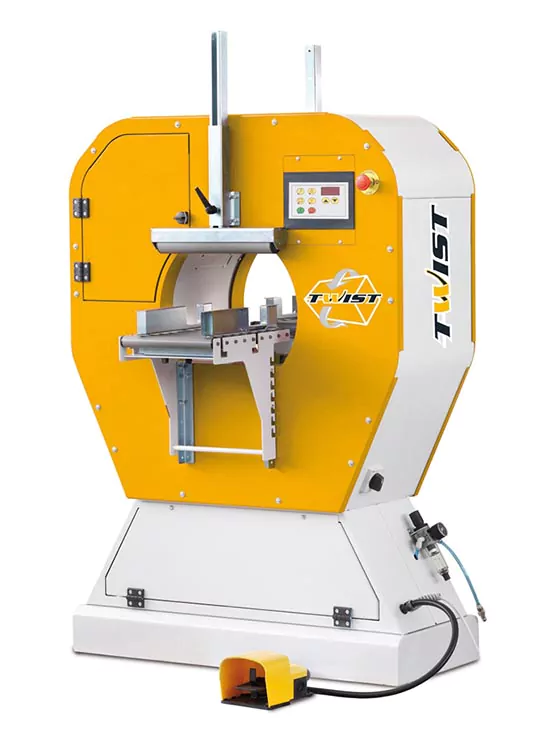

Horizontal winding machine


Operational Features


  • Profiles of any length
  • For wrapping and stretching tubes, rods, profiles as well as square packaged goods
  • Products with small dimensions such as stacks of paper, rolls of film, etc.
  • Automatic holding and cutting of the film
  • Semi-automatic horizontal wrapping machine
  • Sturdy rotating unit made of steel
  • Pneumatic system for film cold cutting
  • Automatic positioning and automatic film roll cutting
  • Start and end wraps or continuous wraps by pedal control
  • Electronic control of the turning speed of the turning unit
  • With infeed + outfeed roller conveyor (undriven)

TECHNICAL SPECIFICATIONS

Technical specifications Twist
Opening diameter 420 mm (optional: 620 / 1,000 / 1,400 mm)
Max. turning speed 90 rpm
Supply voltage 230 V 1 ph and 50 / 60 Hz
Installed power 0.75 kWv
Operating pressure 4 (+- 1) bar
Max. operating pressure 10 bar
Air consumption 10 NL / min
Infeed / outfeed belt length 280 mm
Infeed / outfeed belt width 280 mm
Conveyor Speed manually
Machine height 1,690 mm
Total width 1,190 mm
Total length 930 mm
Machine weight 200 kg

Special equipment and accessories


  • 2 additional pressure pads, manual (in / out)
  • Version with 2 opposing stretch film rolls and two holding and cutting fixtures (for faster & more stable stretching)

Film


  • Type of film: machine stretch film
  • Foil width: 125 mm
  • Foil bags: 17-35 µm
  • Roll diameter: max. 210 mm
  • Roll core diameter: 76mm
