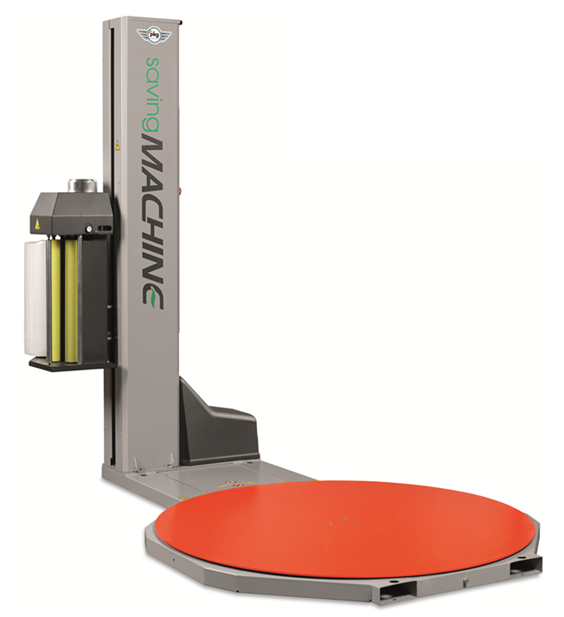

Saving

Operational Features


  • Foil saving ( thanks to pre-stretching system)
  • Problematic packaged goods
  • Unstable pallet loads
  • Oversized and / or extremely high packaged goods
  • Versatile application possibilities due to various optional extras:
  • Pallet weight determination (scales)
  • Drive-free rollers on the turntable
  • Freezers and cold storage rooms
  • Robust steel construction of the machine frame
  • Soft start and soft stop
  • Photocell for pallet height detection and stretch control

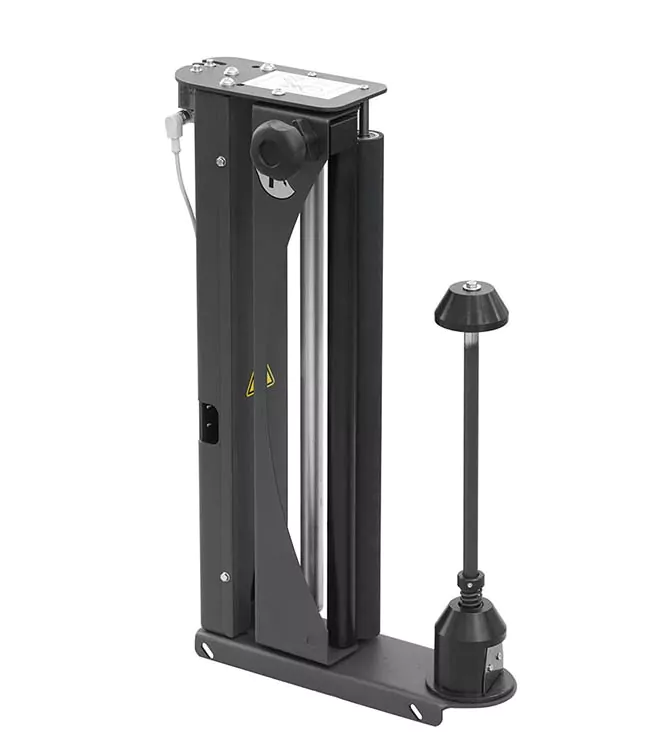

stretch system Model variants

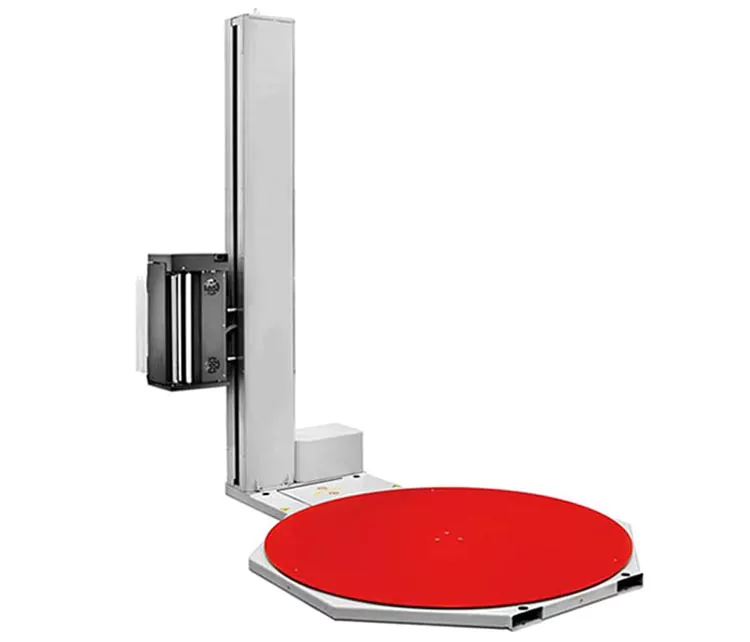

turntable variants

TECHNICAL SPECIFICATIONS

Technical specifications Saving
Turntable diameter 1,650 mm (optional: 1,500 mm, 1,800 mm, 2,200 mm, 2,400 mm, 2,600 mm)
Max. pallet dimensions Up to 1,000 x 1,200 mm (optional: up to 1,700 x 1,700 mm)
Max. turntable speed 3 – 12 revolutions / min
Load capacity 2,000 kg
Electr. connection 230 V, 50 Hz
Machine weight Approx. 450 kg
Machine performance Approx. 20 pallettes / h
Max. wrapping height 2,450 mm (optional: 2,200 mm, 2,700 mm, 3,200 mm, 3,500 mm, 3,900 mm)
Foil type Machine stretch film
Roll diameter Max. 250 mm
Roll height 500 mm
Roll weight ~20 kg

Safety features


  • Emergency stop switch on the control panel
  • Acoustic signal on start and stop

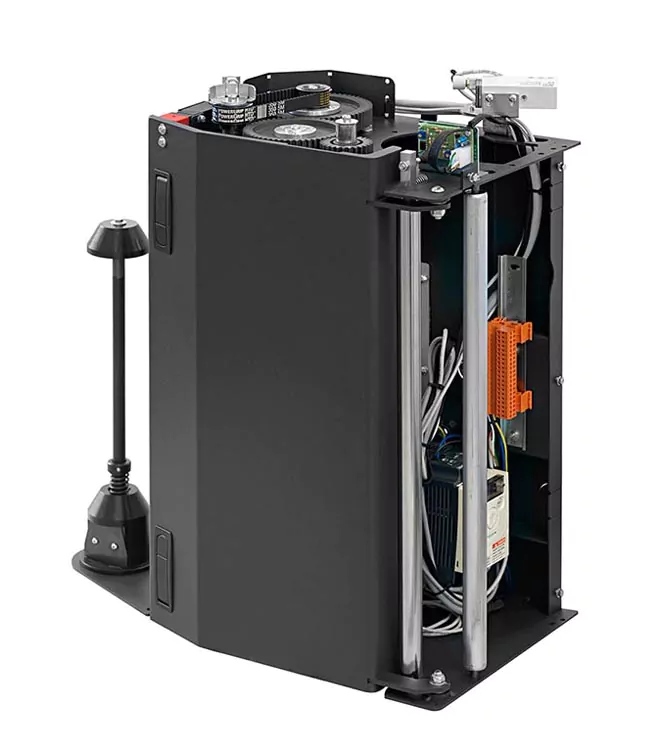

  • Foil slide with safety mechanism (stops when encountering resistance during downward movement)
  • Safety switch of the insertion opening when the turntable is recessed (optional)

Special equipment and accessories

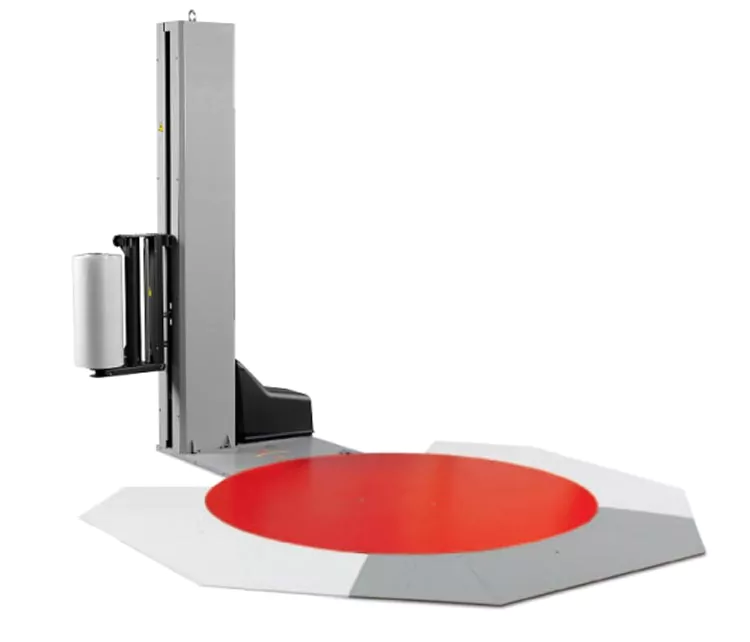

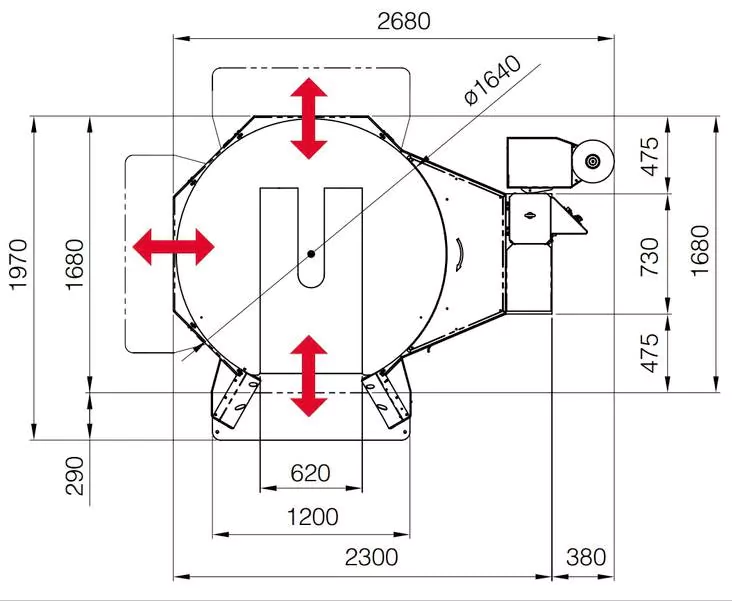

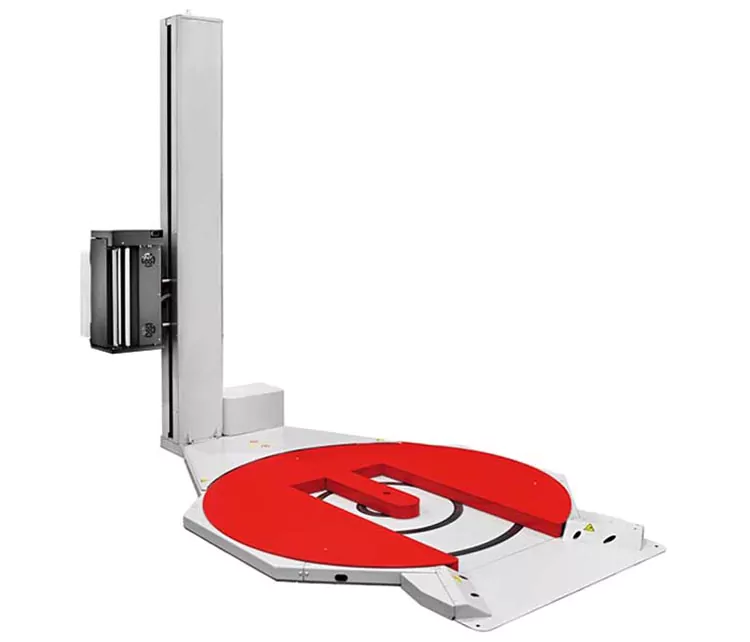

  • Recessed turntable / flat turntable (load capacity: 1,200 kg, Ø 1,650 mm + 1,800 mm) optionally as frontal, right-hand or left-hand version (can be changed subsequently)

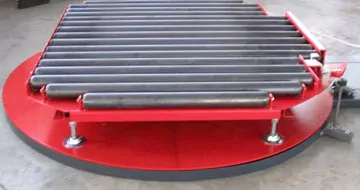

  • Turntable with drive-free conveyor rollers (locked)

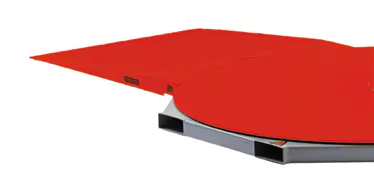

  • Ramp for forklift
  • Countersunk frame (turntable flush with floor)

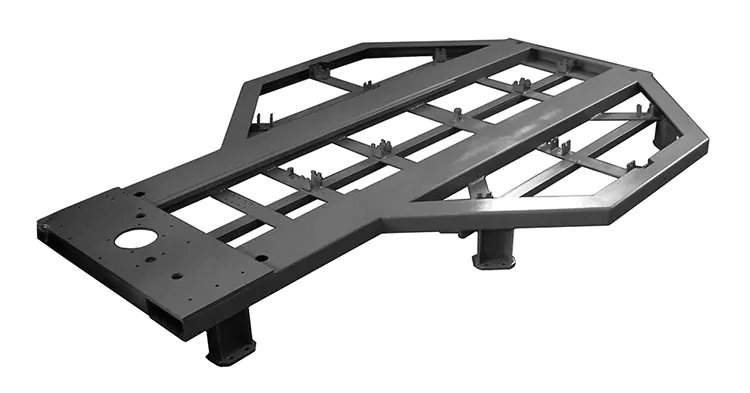

  • Elevation frame with support feet (12 cm)
  • Freezer and cold storage room equipment
  • Integrated scales
  • Foil compression system (manual)
  • Wifi network connection

Workflow


First, the pallet is positioned on the machine's turntable. The stretch film is manually attached to the pallet and the stretching process is started. When the wrapping is finished, the machine stops at the start position and the film only needs to be cut.

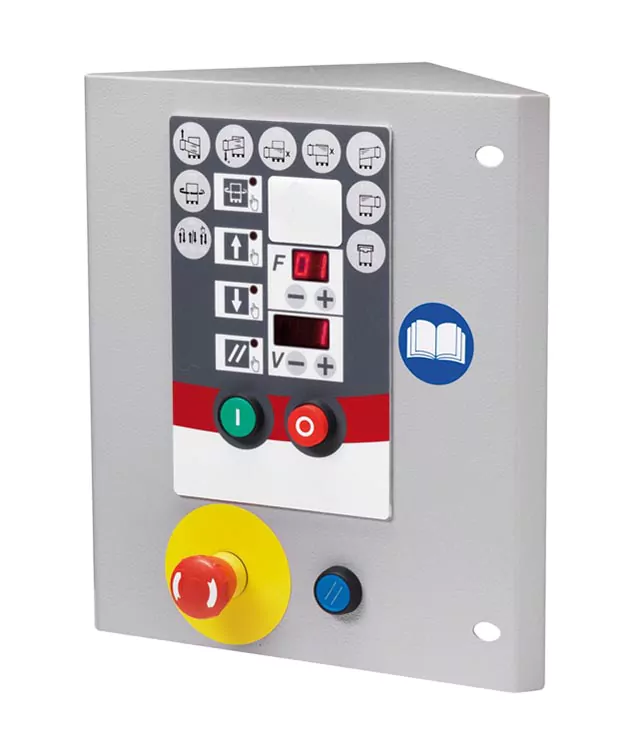

control panel

Adjustable parameters on the operator panel Saving
User-specific programmes 3
Spiral winding (up only or down only) ✓
Cross winding (up and down) ✓
Cross winding with cover sheet (rainproof) ✓
Cross winding with reinforcement areas (manual function) ✓
Cross winding without photocell function (stretching to preset height) ✓
Ascent and descent speed of the foil carriage (separately adjustable) ✓
Number of foot and head windings ✓
Speed of the turntable ✓
Application voltage separately adjustable up/down ✓
Manual control of the machine ✓
Reset function ✓
Foil overlap at the top of the pallet ✓
