Eddy
Eddy

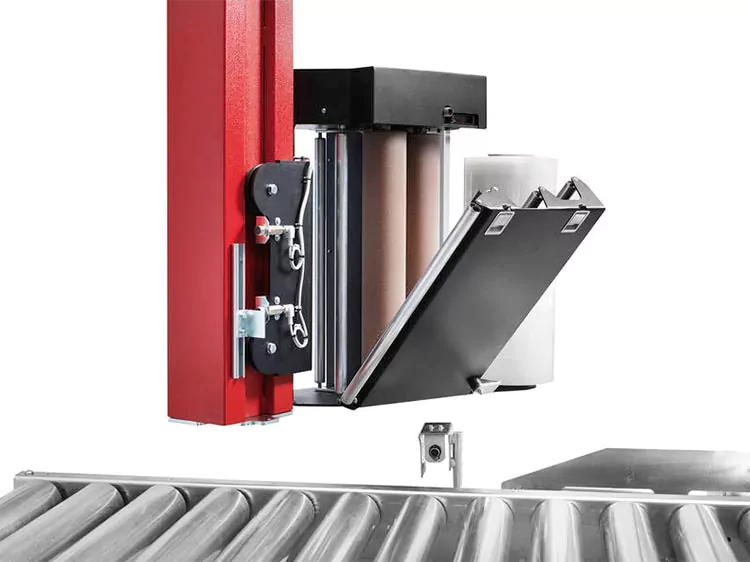

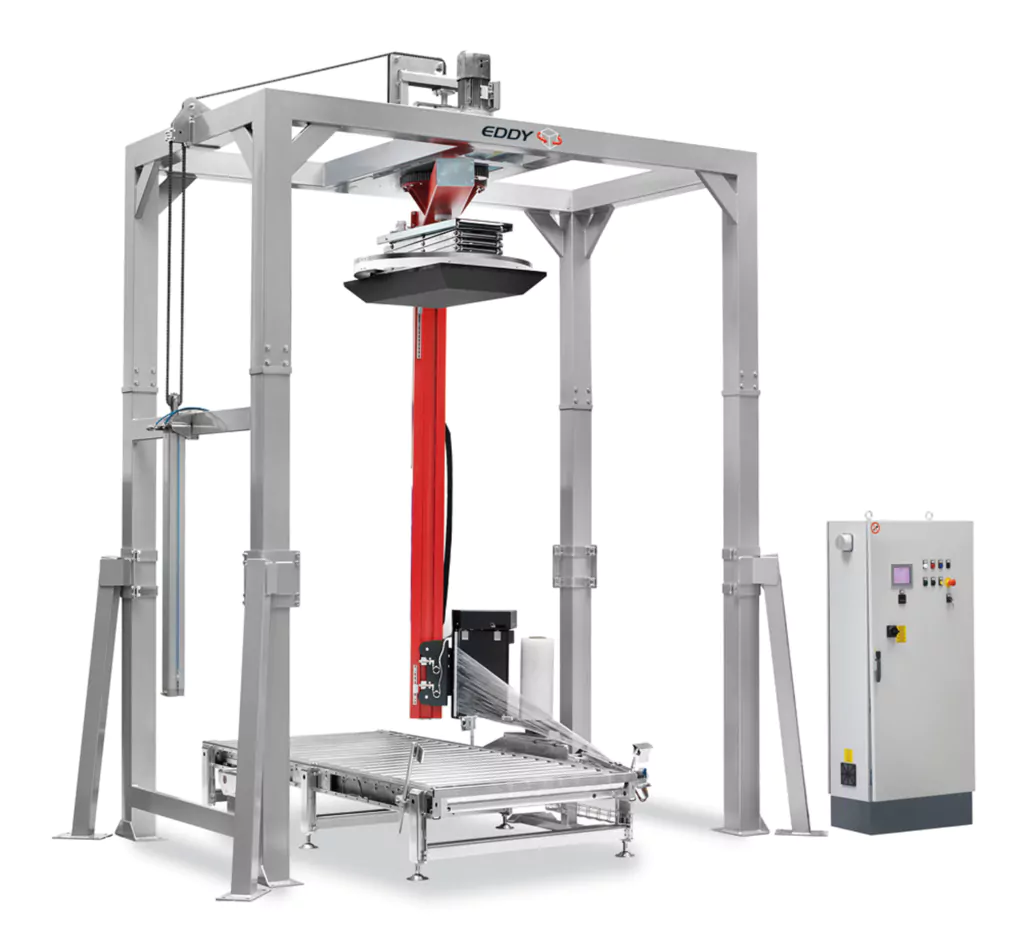

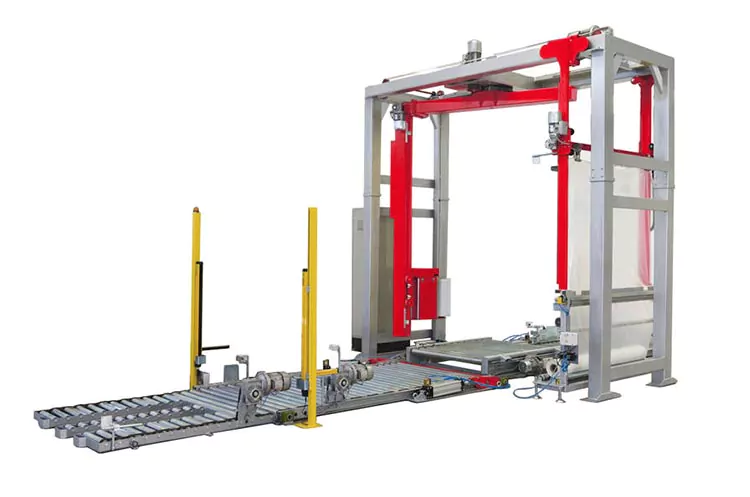

Satellite winder with rotating arm
Operational Features
- Plants with high production capacities
- Can be integrated into production lines
- Wrapping of unstable products
- Pallet loads with high weight
- Soft start and soft stop
- Photocell for pallet height detection and stretch control

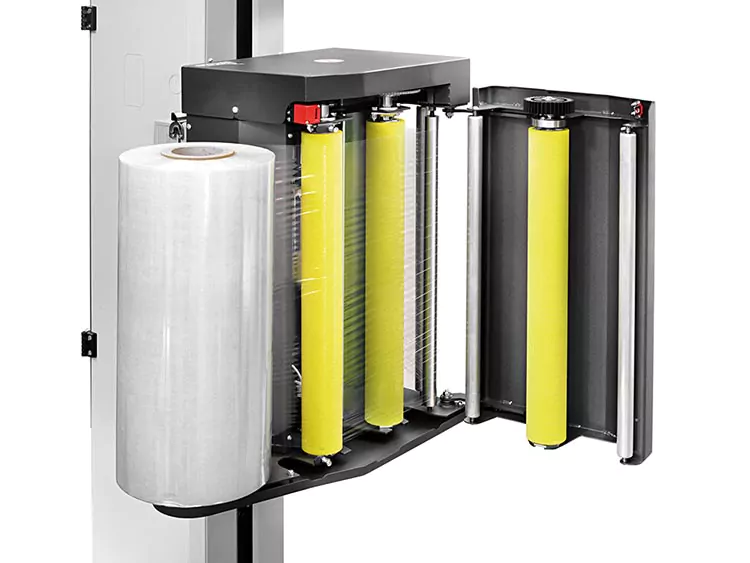

- Fast threading system of the stretch film (MPS only)
- Siemens PLC control S7-200 with 6″ Pro-face touch-screen
- High-performance bearings for the rotating arm
- 9 programmes can be designed user-specifically
stretch system Model variants

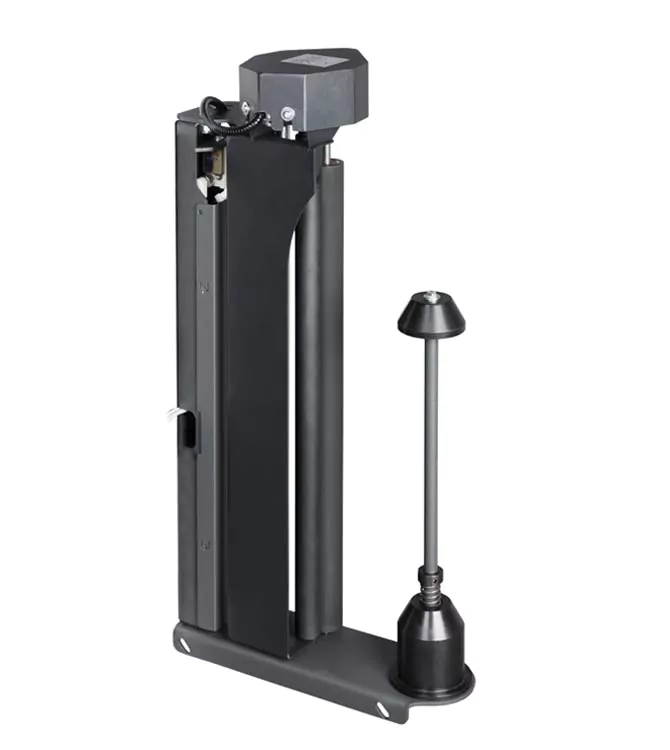

20 EB
Electromagnetic braking of the guide roller via the control panel

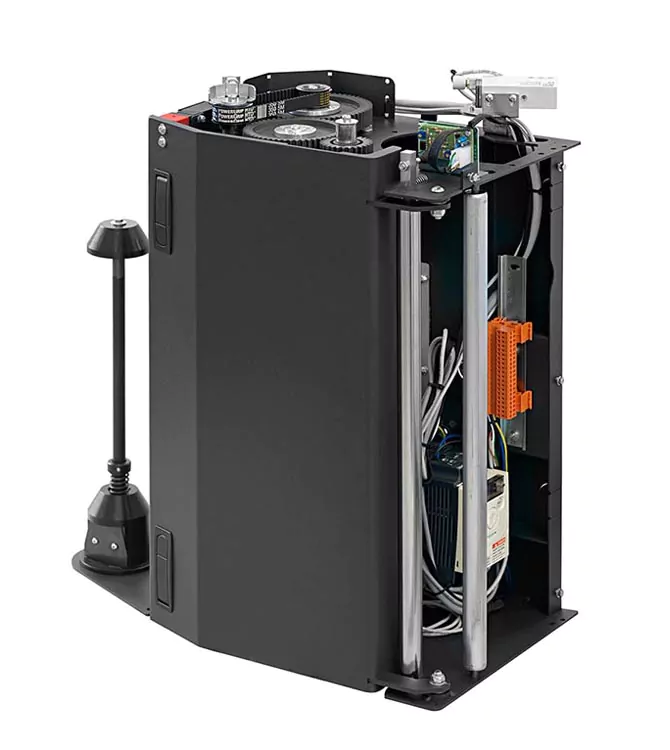

100 MPS 1
Motorized pre-stretch (one motor) with fixed percentage (default 200%, variable by swapping optional gears 150%, 250%)

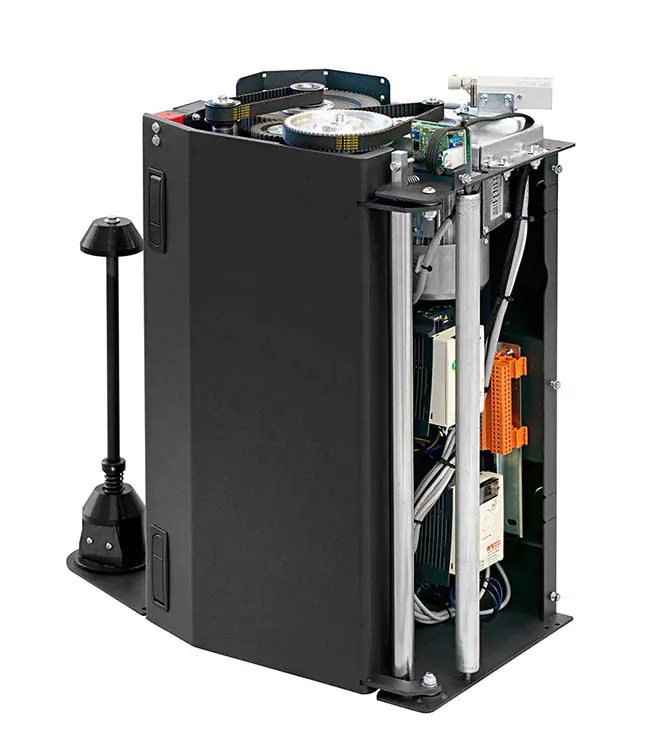

100 MPS 2
Motorized pre-stretching (two motors) continuously adjustable via control panel (120 - 400%)
TECHNICAL SPECIFICATIONS
| Technical specifications | Eddy |
|---|---|
| Max. turntable speed | max. 25 rpm |
| Turntable diameter | Ø 2,000 mm (optionally larger) |
| Pallet dimension | up to 1,100 x 1,300 mm (for Ø 2,200 mm) |
| Electr. connection | 400 V, 50 Hz, 3 kW (3PH+N+G; IP54) |
| Compressed air | 6 bar (100 Nl/min) |
| Machine weight | approx. 1,500 kg |
| Machine performance | up to 90 pallettes / h (varies – depending on the equipment of the machine) |
| Max. wrapping height | 2,000 mm (optionally also higher) |
| Foil type | Machine stretch film |
| Roll diameter | max. 250 mm |
| Roll height | 500 mm |
| Roll weight | ~20 kg |
Safety features
- Emergency stop switch on the control panel
- Security fence including door with safety shutdown (optional)
Special equipment and accessories
- Safety fence (incl. door with safety shutdown)
- CE safety measures 2006/42/CE:
- Pneumatically operated solenoid valve to prevent any movement of the machine in case of emergency stop
- Two intrinsically safe light barriers at the exit of the pallet transport system with automatic muting
- Two self-controlled power units (one at the input and one at the output) to control operation of the safety barriers
- Emergency circuit controlled by "CE" approved PILZ relays
- Electronic protection device in compliance with Directive 2004/108/EC on electromagnetic compatibility (EMC)
- Operating and maintenance manual comply with the Machinery Directive
- Welding unit 1 (welds the film end to the pallet; in the standard version the film is cut off and pressed on)
- Sealing unit 2 (seals the film end by means of a contrast bar, i.e. without touching the product)
- Centring unit (necessary for pallets of different lengths)
- Motorised roller conveyors
- Frequency converter for soft start and stop on roller conveyor
- Pneumatic lifting device for the centre of the machine with a standard lifting capacity of 2,000 kg (optionally more)
- Cover sheet support (dust + rain protection; integrated)
- Cover sheet support (dust protection; in front or behind)

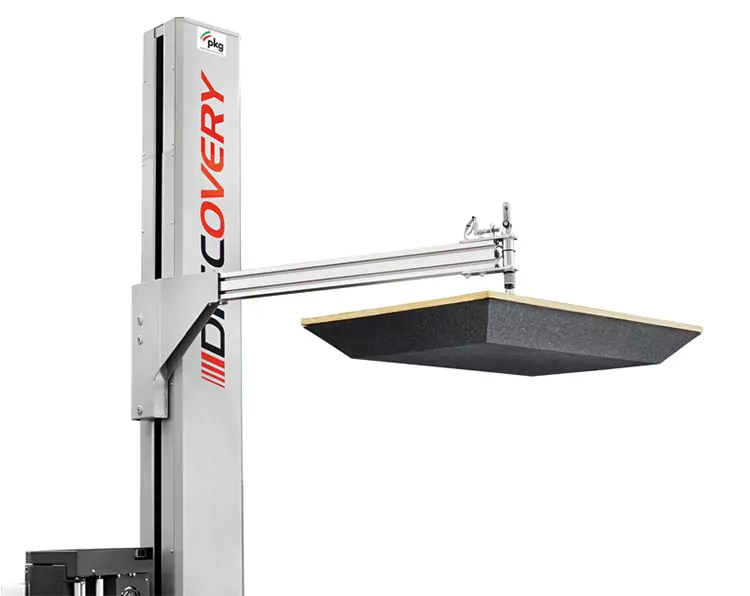

- Pneumatic pressure pad (with rectangular plate)
- Ram protection (with photocell recognition for forklift trucks)

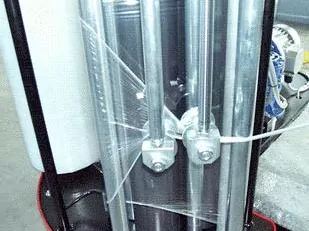

- Stretch cord system
control panel
Selectable programmes on the control panel
- Programmes can be customised
Adjustable parameters on the touch screen
- Ascent and descent speed of the film carriage (separately adjustable)
- Number of foot and head windings
- Speed
- Film tension
- Key lock
- Reset function
- Film overlap at the head of the pallet
- Pre-stretching separately adjustable bottom / up / top / down (only with 100 MPS 2)
- Number of reinforcement windings
