Twist Auto

Twist Auto

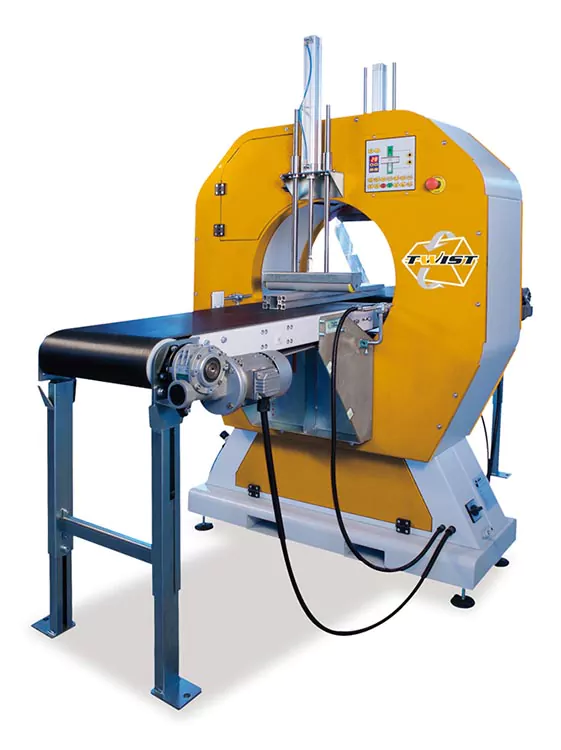

Horizontal winding machine


Operational Features


  • Profiles of any length
  • For wrapping and stretching tubes, rods, profiles as well as square packaged goods
  • Products with small dimensions such as stacks of paper, rolls of film, etc.
  • Automatic holding and cutting of the film
  • Fully automatic horizontal wrapping machine specially designed for the packaging of spare parts
  • Sturdy rotating unit made of steel
  • SIEMENS SPS S7-200 with touch screen
  • Pneumatic system for film cold cutting
  • Automatic positioning and automatic film roll cutting
  • Electronic control of the turning speed of the turning unit
  • With infeed + outfeed roller conveyor (driven)
  • Up to 200 user-specific programmes can be configured

TECHNICAL SPECIFICATIONS

Technical specifications Twist Auto
Opening diameter 420 mm (optional: 620 mm)
Max. turning speed 90 rpm
Supply voltage 230 V / 50 Hz
Installed power 0.95 kW
Operating pressure 6 bar
Infeed / outfeed belt length 1,000 mm
Infeed / outfeed belt width 300 mm
Machine height 1,471 mm
Total width 994 mm
Total length 2,505 mm
Machine weight 200 kg

Special equipment and accessories


  • Conveyor belt (L: 1,000, W: 1,100 (instead of W: 900 mm)
  • Conveyor belt, add. IN / OUT (L: 1,000, W: 1,100 mm)
  • Conveyor belt, add. IN / OUT (L: 2,500, W: 1,100 mm)

Film


  • Type of film: machine stretch film
  • Foil width: 125 mm
  • Foil bags: 17 - 35 µm
  • Roll diameter: max. 250 mm
  • Roll core diameter: 76 mm

Adjustable parameters on the control panel


  • Number of foot and head windings
  • Number of reinforcement windings
  • Speed of the turning unit
  • Speed of the conveyor belt
  • Create up to 200 programmes
